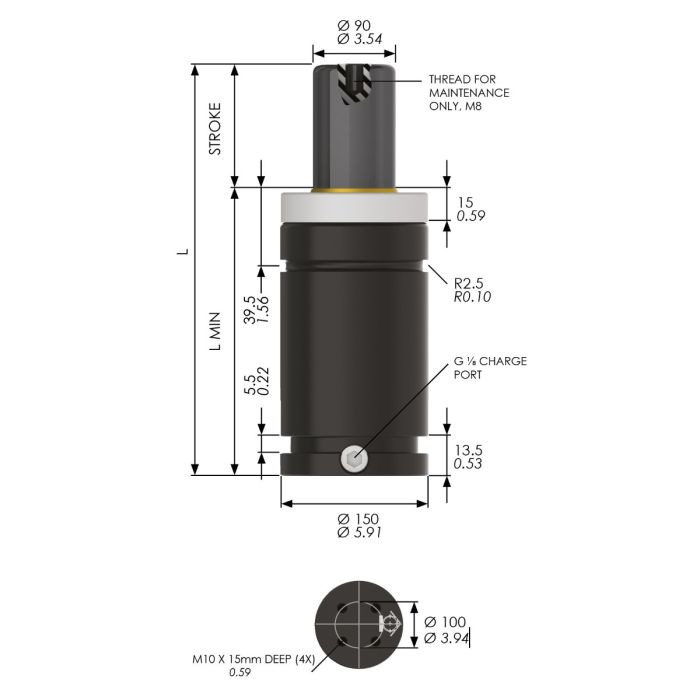

HS-EX9500-100 Nitrogen Gas Spring, 9500daN Force
SKU
HSEX9500-100
| Body Dia. (mm) | 150 |
|---|---|
| Piston Dia. (mm) | 90 |
| Stroke (mm) | 100 |
| L Min (mm) | 190 |
| Full Length (mm) | 290 |
| Mounting Options | Base Plate, End Support, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Charge Port | G1/8 |
| Tapped Hole Depth (mm) | 15 |
| Initial Force (N) | 95000 |
| Max Force (N) | 151000 |
| Certification | PED 2014/68/EU |
Product Enquiry
The HS-EX9500-100 is a powerful compact rod sealed gas spring for hot stamping applications. It features a maximum spring force of 15100daN and a weight of 15.41kg
