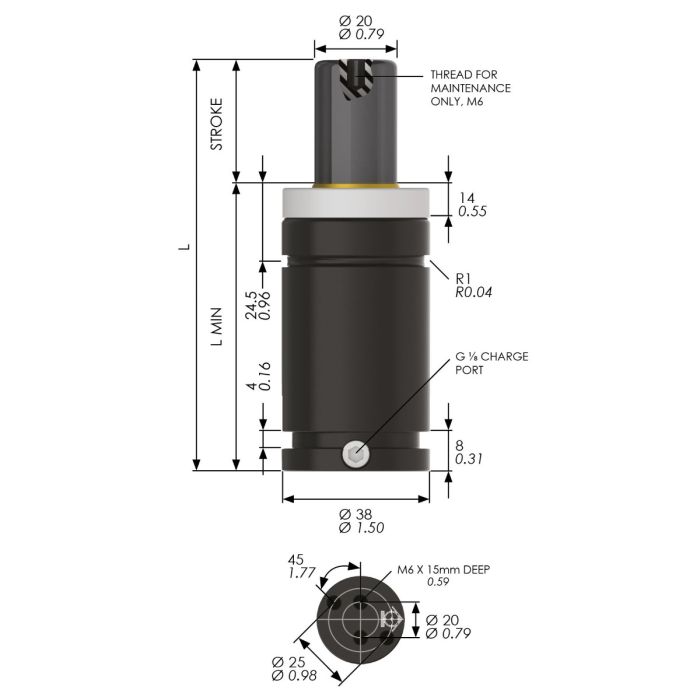

HS-G-EX0500-050 Nitrogen Gas Spring, 470daN Force
SKU
HS-G-EX0500-050
| Body Dia. (mm) | 38 |
|---|---|
| Piston Dia. (mm) | 20 |
| Stroke (mm) | 50 |
| L Min (mm) | 102 |
| Full Length (mm) | 153 |
| Mounting Options | End Support, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Charge Port | G1/8 |
| Tapped Hole Depth (mm) | 15 |
| Initial Force (N) | 4700 |
| Max Force (N) | 7200 |
| Certification | PED 2014/68/EU |
Product Enquiry
The HS-G-EX0500-050 is an extended version of the HS-EX hot stamping gas spring with deeper tapped holes in the base. It features a maximum spring force of 720daN and a weight of 0.53kg
-
Product codeProduct DescriptionStock Status
-
HS-G-EX0500-050HS-G-EX0500-050 Nitrogen Gas Spring, 470daN ForceChat or Contact us
