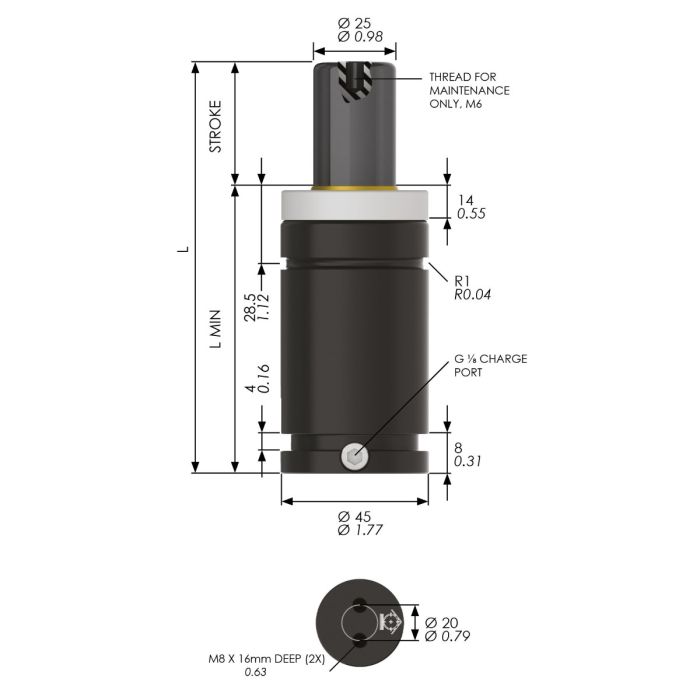

HS-G-EX0750-080 Nitrogen Gas Spring, 740daN Force
SKU
HS-G-EX0750-080
| Body Dia. (mm) | 45 |
|---|---|
| Piston Dia. (mm) | 25 |
| Stroke (mm) | 80 |
| L Min (mm) | 139 |
| Full Length (mm) | 219 |
| Mounting Options | Base Plate, End Support, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Charge Port | G1/8 |
| Tapped Hole Depth (mm) | 16 |
| Initial Force (N) | 7400 |
| Max Force (N) | 11900 |
| Certification | PED 2014/68/EU |
Product Enquiry
The HS-G-EX0750-080 is an extended version of the HS-EX hot stamping gas spring with deeper tapped holes in the base. It features a maximum spring force of 1190daN and a weight of 1.12kg
