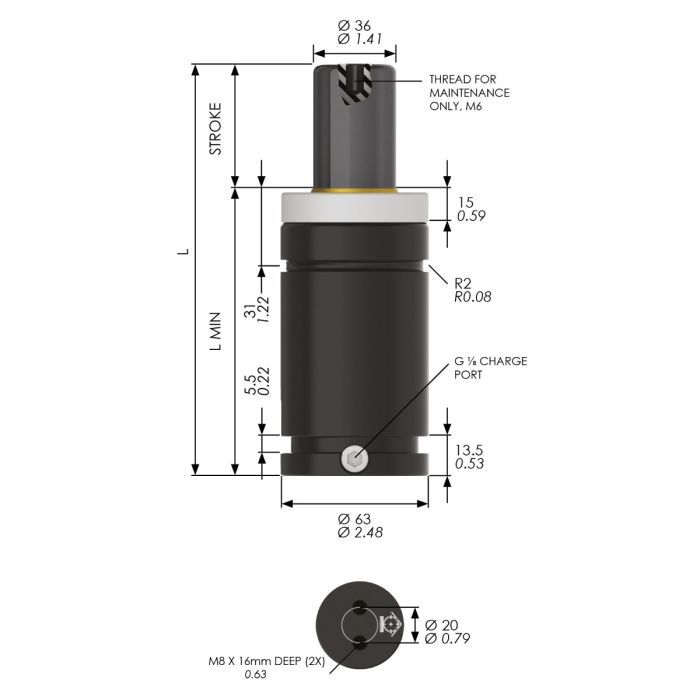

HS-G-EX1500-080 Nitrogen Gas Spring, 1500daN Force
SKU
HS-G-EX1500-080
| Body Dia. (mm) | 63 |
|---|---|
| Piston Dia. (mm) | 36 |
| Stroke (mm) | 80 |
| L Min (mm) | 144 |
| Full Length (mm) | 224 |
| Mounting Options | End Support, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Charge Port | G1/8 |
| Tapped Hole Depth (mm) | 16 |
| Initial Force (N) | 15000 |
| Max Force (N) | 24200 |
| Certification | PED 2014/68/EU |
