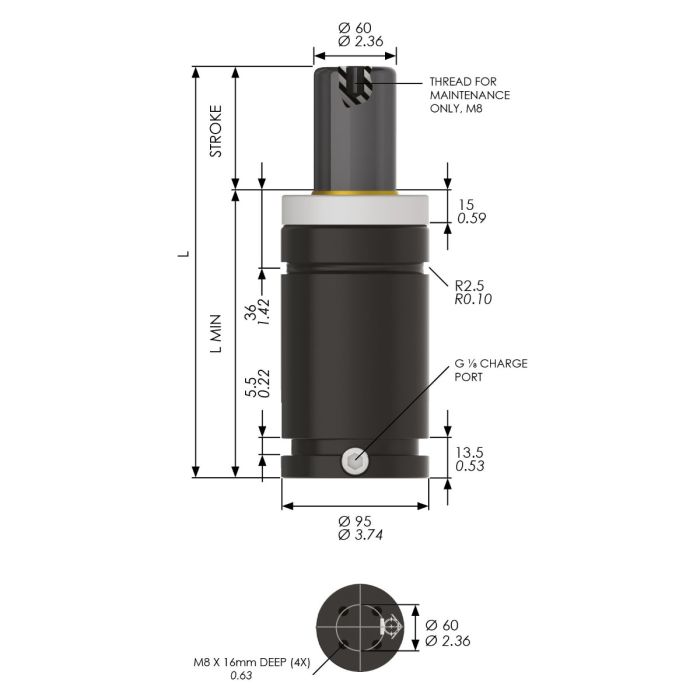

HS-G-EX4200-100 Nitrogen Gas Spring, 4200daN Force

SKU
HS-G-EX4200-100
More Information
Body Dia. (mm) 95
Piston Dia. (mm) 60
Stroke (mm) 100
L Min (mm) 174
Full Length (mm) 274
Mounting Options Base Plate, End Support, Front Flange, Tapped Hole, Square Flange, Square Front Flange
Charge Port G1/8
Tapped Hole Depth (mm) 16
Initial Force (N) 42000
Max Force (N) 69100
Certification PED 2014/68/EU
No documents available, please contact us.
P.O.A Contact us for more information
All prices exclude VAT
The HS-G-EX4200-100 is an extended version of the HS-EX hot stamping gas spring with deeper tapped holes in the base. It features a maximum spring force of 6910daN and a weight of 5.37kg
Metrol Springs
HS-G-EX4200-100
/media/catalog/product/h/s/hs-g-ex4200_5.jpg
