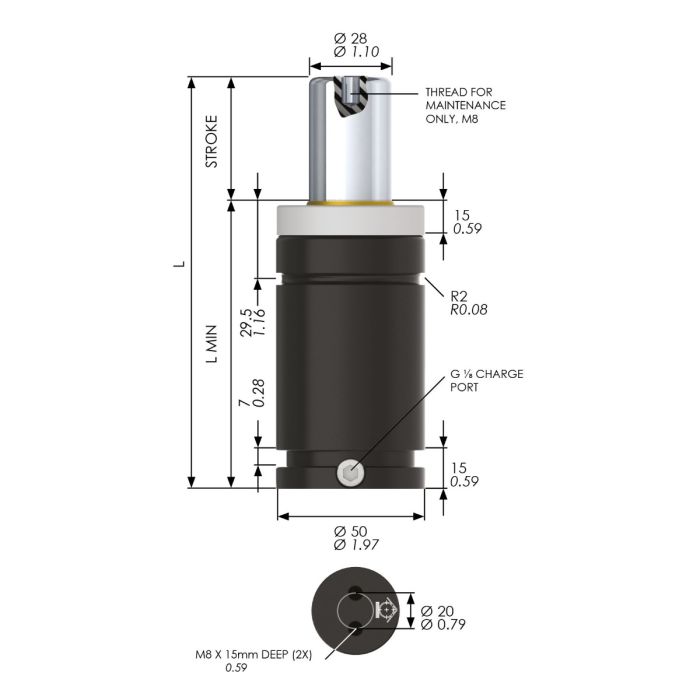

HS-MX1000-050 Nitrogen Gas Spring, 920daN Force
SKU
HS-MX1000-050
| Body Dia. (mm) | 50 |
|---|---|
| Piston Dia. (mm) | 28 |
| Stroke (mm) | 50 |
| L Min (mm) | 145 |
| Full Length (mm) | 195 |
| Mounting Options | Base Plate, End Support, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Charge Port | G1/8 |
| Tapped Hole Depth (mm) | 15 |
| Initial Force (N) | 9200 |
| Max Force (N) | 13200 |
| Certification | PED 2014/68/EU |
Product Enquiry
The HS-MX1000-050 is our hot stamping gas spring combining the power of the HS-EX range with the standard size of the HS-NG range. It features a maximum spring force of 1320daN and a weight of 1.64kg
