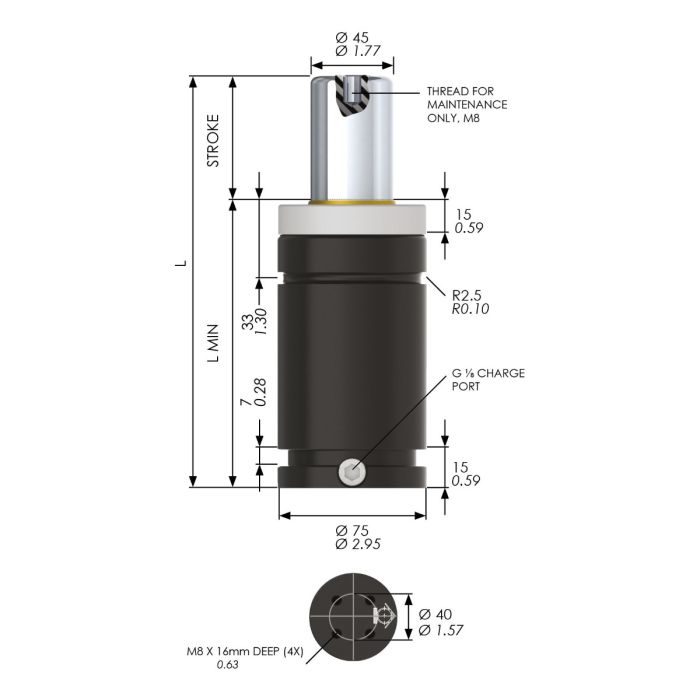

HS-MX2400-300 Nitrogen Gas Spring, 2400daN Force
SKU
HS-MX2400-300
| Body Dia. (mm) | 75 |
|---|---|
| Piston Dia. (mm) | 45 |
| Stroke (mm) | 300 |
| L Min (mm) | 410 |
| Full Length (mm) | 710 |
| Mounting Options | Base Plate, End Support, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Charge Port | G1/8 |
| Tapped Hole Depth (mm) | 16 |
| Initial Force (N) | 24000 |
| Max Force (N) | 39100 |
| Certification | PED 2014/68/EU |
Product Enquiry
The HS-MX2400-300 is our hot stamping gas spring combining the power of the HS-EX range with the standard size of the HS-NG range. It features a maximum spring force of 3910daN and a weight of 7.51kg
