HS-MX4200-050 Nitrogen Gas Spring, 4200daN Force
SKU
HS-MX4200-050

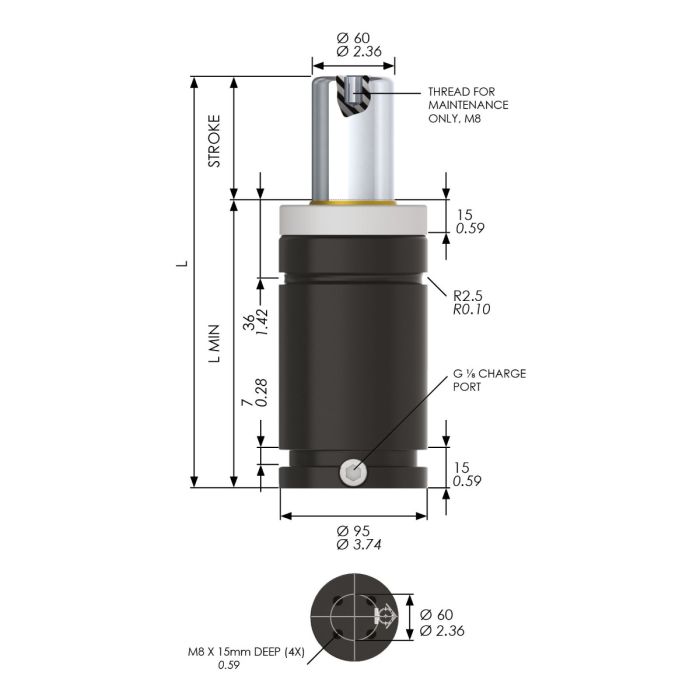

| Body Dia. (mm) | 95 |
|---|---|
| Piston Dia. (mm) | 60 |
| Stroke (mm) | 50 |
| L Min (mm) | 170 |
| Full Length (mm) | 220 |
| Mounting Options | Base Plate, End Support, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Charge Port | G1/8 |
| Tapped Hole Depth (mm) | 15 |
| Initial Force (N) | 42000 |
| Max Force (N) | 57200 |
| Certification | PED 2014/68/EU |
Product Enquiry
The HS-MX4200-050 is our hot stamping gas spring combining the power of the HS-EX range with the standard size of the HS-NG range. It features a maximum spring force of 5720daN and a weight of 6.36kg
