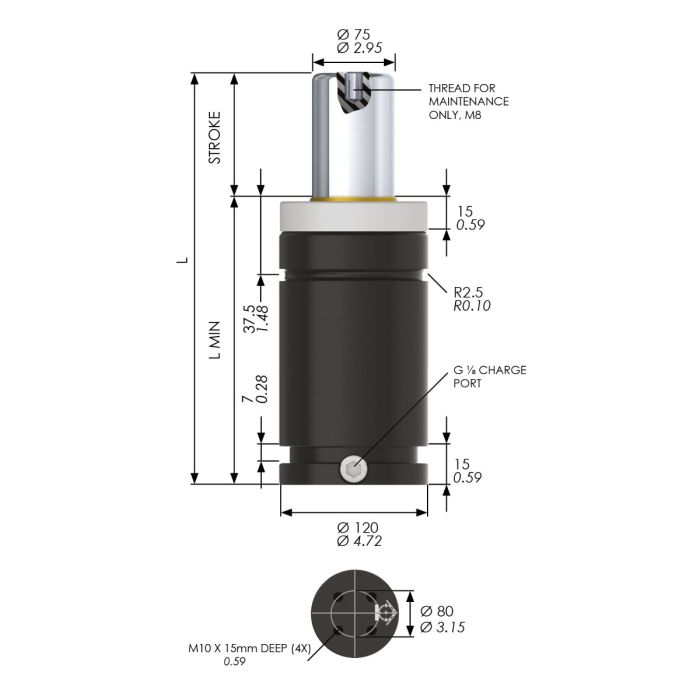

HS-MX6600-050 Nitrogen Gas Spring, 6630daN Force
SKU
HS-MX6600-050
| Body Dia. (mm) | 120 |
|---|---|
| Piston Dia. (mm) | 75 |
| Stroke (mm) | 50 |
| L Min (mm) | 190 |
| Full Length (mm) | 240 |
| Mounting Options | End Support, Front Flange, Square Flange, Square Front Flange |
| Charge Port | G1/8 |
| Tapped Hole Depth (mm) | 15 |
| Initial Force (N) | 66300 |
| Certification | PED 2014/68/EU |
Product Enquiry
The HS-MX6600-050 is our hot stamping gas spring combining the power of the HS-EX range with the standard size of the HS-NG range. It features a maximum spring force of 8700daN and a weight of 11.63kg
-
Product codeProduct DescriptionStock Status
-
HS-MX6600-050HS-MX6600-050 Nitrogen Gas Spring, 6630daN ForceChat or Contact us
