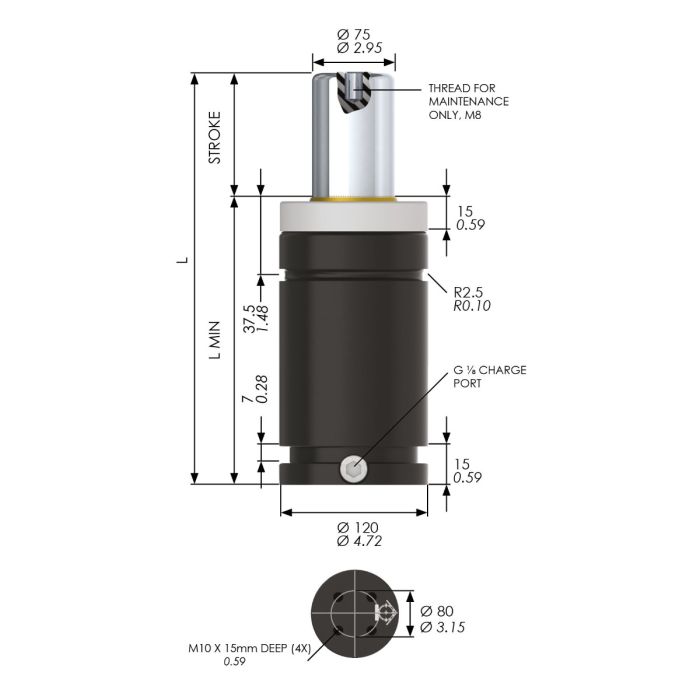

HS-MX6600-250 Nitrogen Gas Spring, 6630daN Force
SKU
HS-MX6600-250
| Body Dia. (mm) | 120 |
|---|---|
| Piston Dia. (mm) | 75 |
| Stroke (mm) | 250 |
| L Min (mm) | 390 |
| Full Length (mm) | 640 |
| Mounting Options | Base Plate, End Support, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Charge Port | G1/8 |
| Tapped Hole Depth (mm) | 15 |
| Initial Force (N) | 66300 |
| Max Force (N) | 104000 |
| Certification | PED 2014/68/EU |
Product Enquiry
The HS-MX6600-250 is our hot stamping gas spring combining the power of the HS-EX range with the standard size of the HS-NG range. It features a maximum spring force of 10400daN and a weight of 23.55kg
