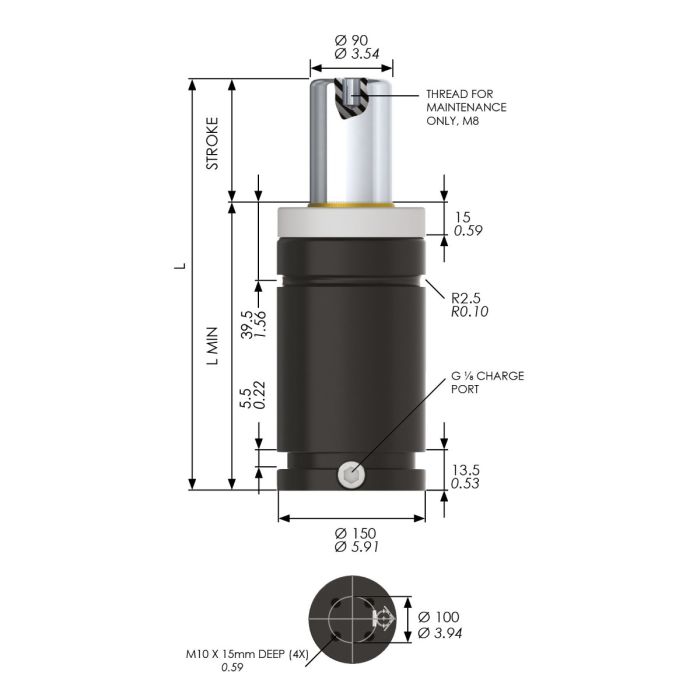

HS-MX9500-200 Nitrogen Gas Spring, 9500daN Force
SKU
HS-MX9500-200
| Body Dia. (mm) | 150 |
|---|---|
| Piston Dia. (mm) | 90 |
| Stroke (mm) | 200 |
| L Min (mm) | 355 |
| Full Length (mm) | 555 |
| Mounting Options | End Support, Front Flange, Square Flange, Square Front Flange |
| Charge Port | G1/8 |
| Tapped Hole Depth (mm) | 15 |
| Initial Force (N) | 95000 |
| Certification | PED 2014/68/EU |
Product Enquiry
The HS-MX9500-200 is our hot stamping gas spring combining the power of the HS-EX range with the standard size of the HS-NG range. It features a maximum spring force of 14380daN and a weight of 33.21kg
-
Product codeProduct DescriptionStock Status
-
HS-MX9500-200HS-MX9500-200 Nitrogen Gas Spring, 9500daN ForceChat or Contact us
