HS-NG1500-025 Nitrogen Gas Spring, 1500daN Force
SKU
HS-NG1500-025

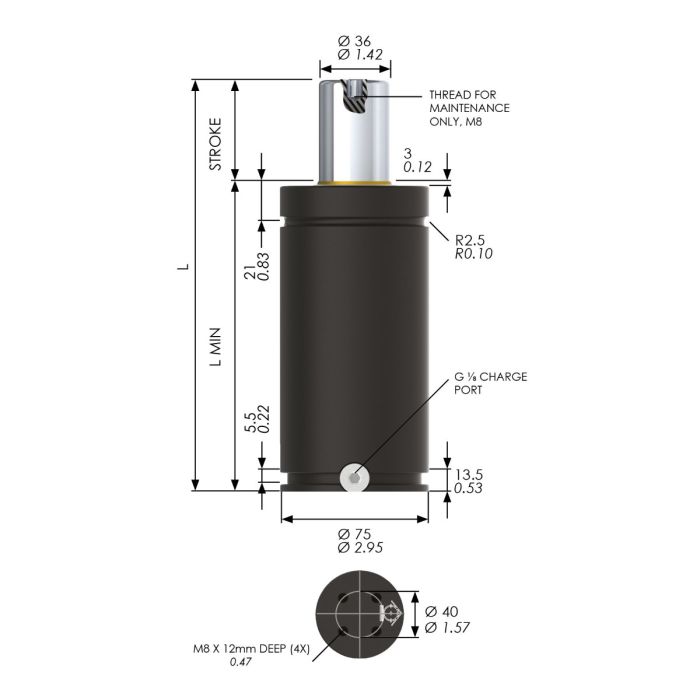

| Body Dia. (mm) | 75 |
|---|---|
| Piston Dia. (mm) | 36 |
| Stroke (mm) | 25 |
| L Min (mm) | 135 |
| Full Length (mm) | 160 |
| Mounting Options | Base Plate, End Support, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Charge Port | G1/8 |
| Tapped Hole Depth (mm) | 12 |
| Initial Force (N) | 15000 |
| Max Force (N) | 23000 |
| Certification | PED 2014/68/EU |
Product Enquiry
The HS-NG1500-025 is our hot stamping gas spring designed for durability. It features a maximum spring force of 2300daN and a weight of 3.45kg
-
Product codeProduct DescriptionStock Status
-
HS-NG1500-025HS-NG1500-025 Nitrogen Gas Spring, 1500daN ForceChat or Contact us
