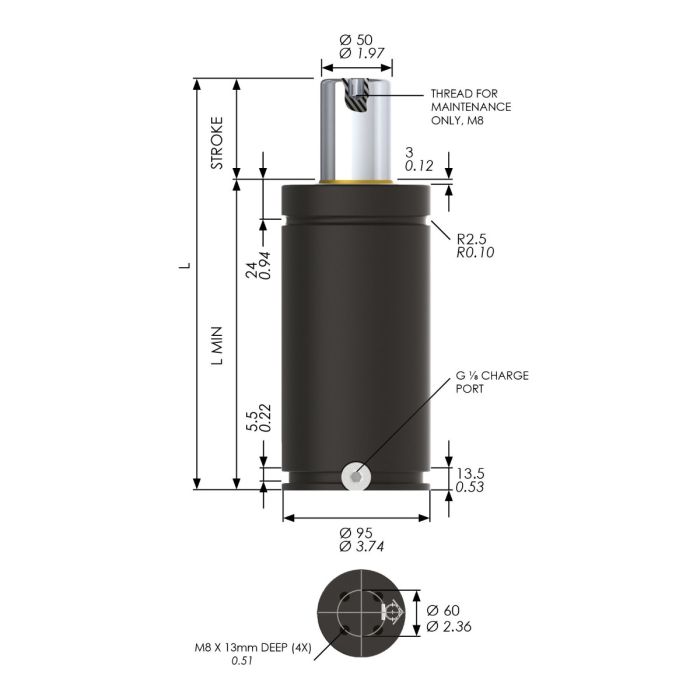

HS-NG3000-200 Nitrogen Gas Spring, 3000daN Force
SKU
HS-NG3000-200
| Body Dia. (mm) | 95 |
|---|---|
| Piston Dia. (mm) | 50 |
| Stroke (mm) | 200 |
| L Min (mm) | 320 |
| Full Length (mm) | 520 |
| Mounting Options | End Support, Front Flange, Square Flange, Square Front Flange |
| Charge Port | G1/8 |
| Tapped Hole Depth (mm) | 13 |
| Initial Force (N) | 30000 |
| Certification | PED 2014/68/EU |
Product Enquiry
The HS-NG3000-200 is our hot stamping gas spring designed for durability. It features a maximum spring force of 4800daN and a weight of 11.00kg
-
Product codeProduct DescriptionStock Status
-
HS-NG3000-200HS-NG3000-200 Nitrogen Gas Spring, 3000daN ForceChat or Contact us
