HS-NG5000-063 Nitrogen Gas Spring, 5000daN Force
SKU
HS-NG5000-063

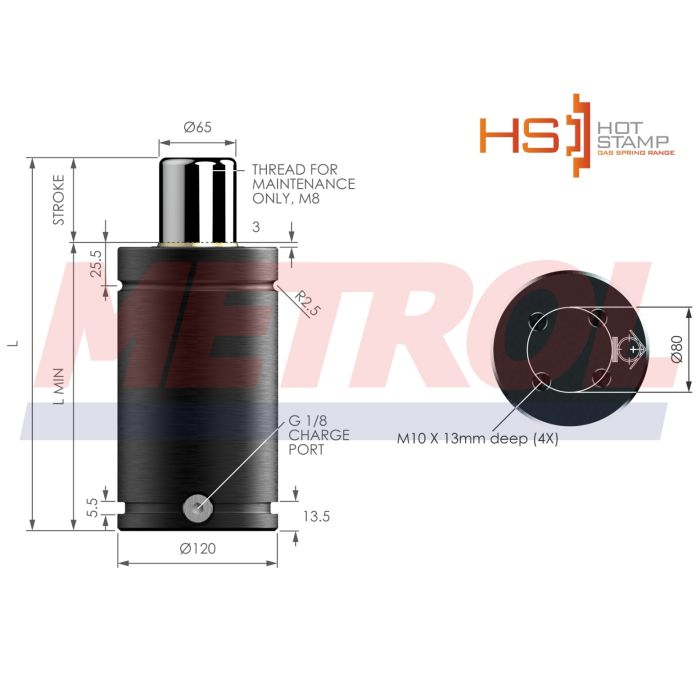

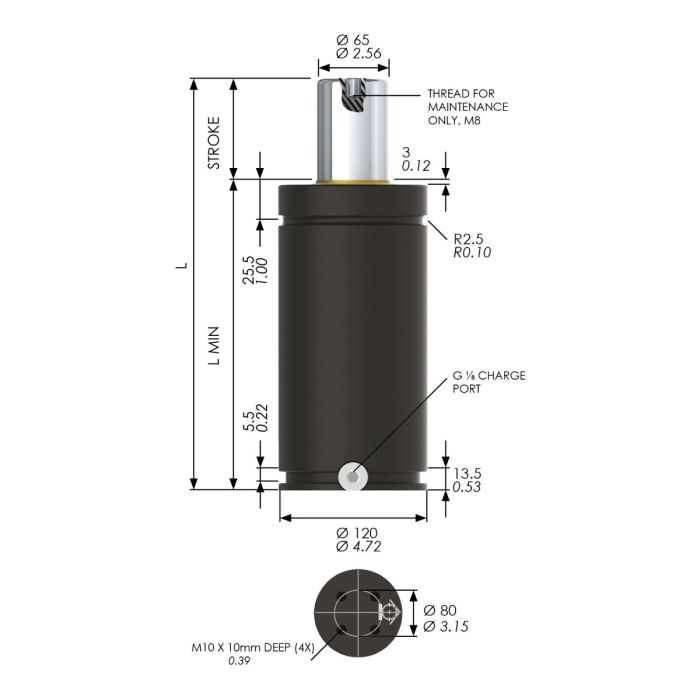

| Body Dia. (mm) | 120 |
|---|---|
| Piston Dia. (mm) | 65 |
| Stroke (mm) | 63 |
| L Min (mm) | 203.5 |
| Full Length (mm) | 267 |
| Mounting Options | Base Plate, End Support, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Charge Port | G1/8 |
| Tapped Hole Depth (mm) | 10 |
| Initial Force (N) | 50000 |
| Max Force (N) | 80000 |
| Certification | PED 2014/68/EU |
Product Enquiry
The HS-NG5000-063 is our hot stamping gas spring designed for durability. It features a maximum spring force of 8000daN and a weight of 12.70kg
