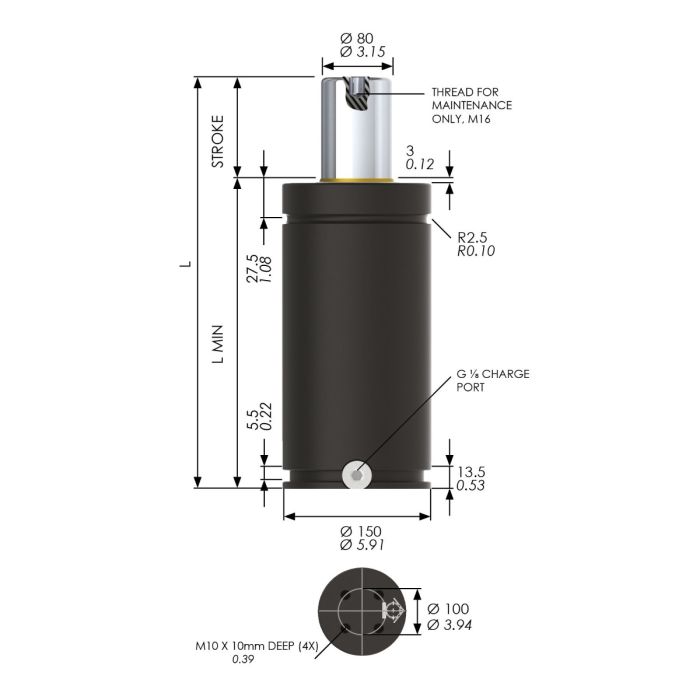

HS-NG7500-160 Nitrogen Gas Spring, 7500daN Force
SKU
HS-NG7500-160
| Body Dia. (mm) | 150 |
|---|---|
| Piston Dia. (mm) | 80 |
| Stroke (mm) | 160 |
| L Min (mm) | 315 |
| Full Length (mm) | 475 |
| Mounting Options | Base Plate, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Charge Port | G1/8 |
| Tapped Hole Depth (mm) | 10 |
| Initial Force (N) | 75000 |
| Max Force (N) | 122000 |
| Certification | PED 2014/68/EU |
Product Enquiry
The HS-NG7500-160 is our hot stamping gas spring designed for durability. It features a maximum spring force of 12200daN and a weight of 29.80kg
