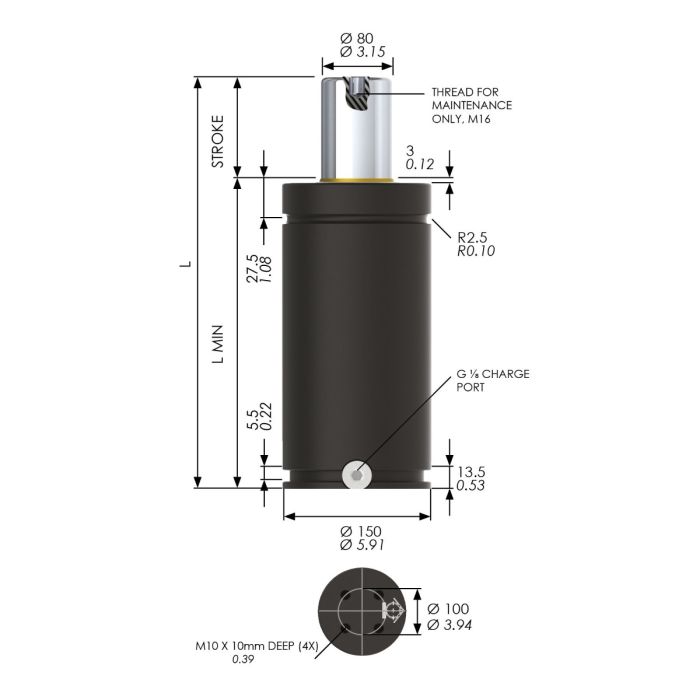

HS-NG7500-250 Nitrogen Gas Spring, 7500daN Force
SKU
HS-NG7500-250
| Body Dia. (mm) | 150 |
|---|---|
| Piston Dia. (mm) | 80 |
| Stroke (mm) | 250 |
| L Min (mm) | 405 |
| Full Length (mm) | 655 |
| Mounting Options | Base Plate, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Charge Port | G1/8 |
| Tapped Hole Depth (mm) | 10 |
| Initial Force (N) | 75000 |
| Max Force (N) | 124000 |
| Certification | PED 2014/68/EU |
Product Enquiry
The HS-NG7500-250 is our hot stamping gas spring designed for durability. It features a maximum spring force of 12400daN and a weight of 35.50kg
