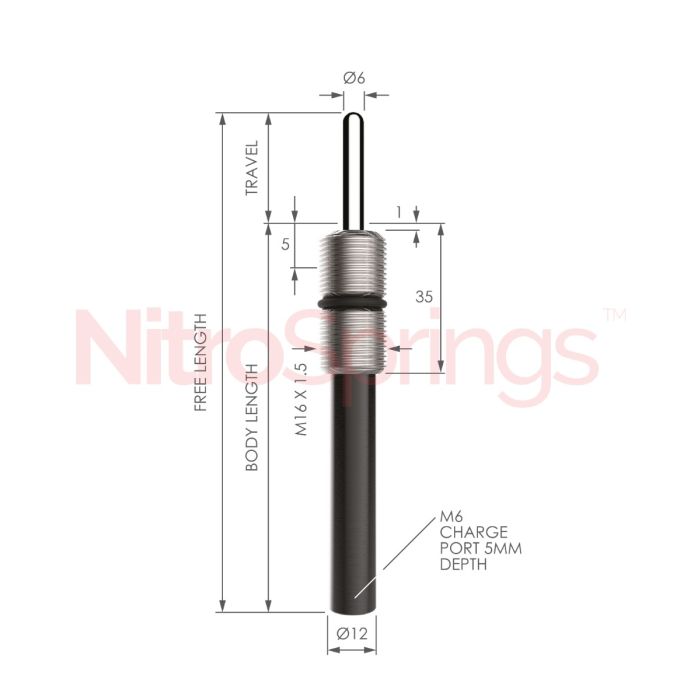

12x105 30mm travel threaded compression spring with an M16x1.5mm thread
SKU
MNE16-1.5-XXX-030
| Outside Dia. (mm) | 12mm |
|---|---|
| Piston Dia. (mm) | 6 |
| Travel (mm) | 30mm |
| Body Length (mm) | 75 |
| Free Length (mm) | 105 |
| Mounting Options | Threaded Pocket |
| Charge Port | M6 |
| Tapped Hole Depth (mm) | 5 |
| Initial Force (N) | 57, 110, 210, 420 |
| Body Thread (B) | M16x1.5 |
| Certification | ISO 9001:2015, PED 2014/68/EU |
£41.00
All prices exclude VAT
VOLUME DISCOUNTS
- QUANTITYPRICE
- 10 + £37.93
- 25 + £34.85
-
Product codeProduct DescriptionStock Status
-
MNE16-1.5-XXX-03012x105 30mm travel threaded compression spring with an M16x1.5mm threadChat or Contact us
