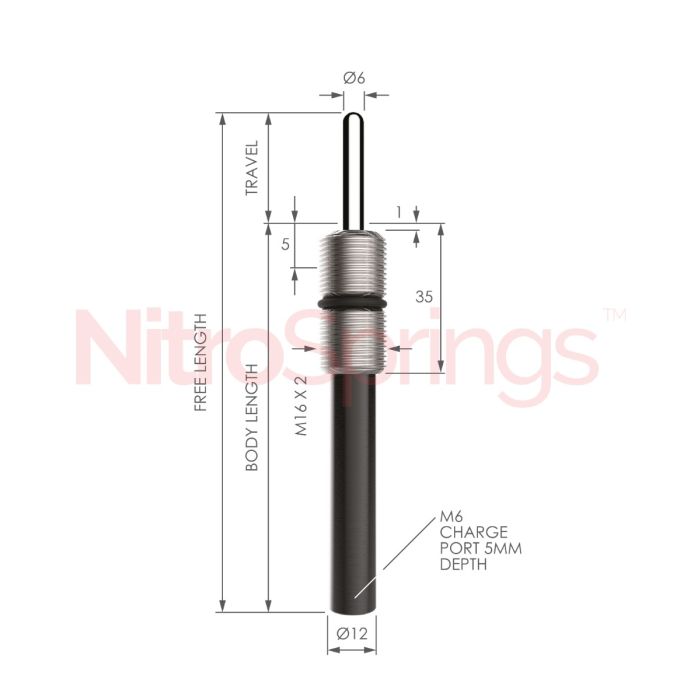

12x145 50mm travel threaded compression spring with an M16x2mm thread
SKU
MNE16-2-XXX-050
| Outside Dia. (mm) | 12mm |
|---|---|
| Piston Dia. (mm) | 6 |
| Travel (mm) | 50mm |
| Body Length (mm) | 95 |
| Free Length (mm) | 145 |
| Mounting Options | Threaded Pocket |
| Charge Port | M6 |
| Tapped Hole Depth (mm) | 5 |
| Initial Force (N) | 57, 110, 210, 420 |
| Body Thread (B) | M16x2 |
| Certification | ISO 9001:2015, PED 2014/68/EU |
£42.06
All prices exclude VAT
VOLUME DISCOUNTS
- QUANTITYPRICE
- 10 + £38.90
- 25 + £35.75
-
Product codeProduct DescriptionStock Status
-
MNE16-2-XXX-05012x145 50mm travel threaded compression spring with an M16x2mm threadChat or Contact us
