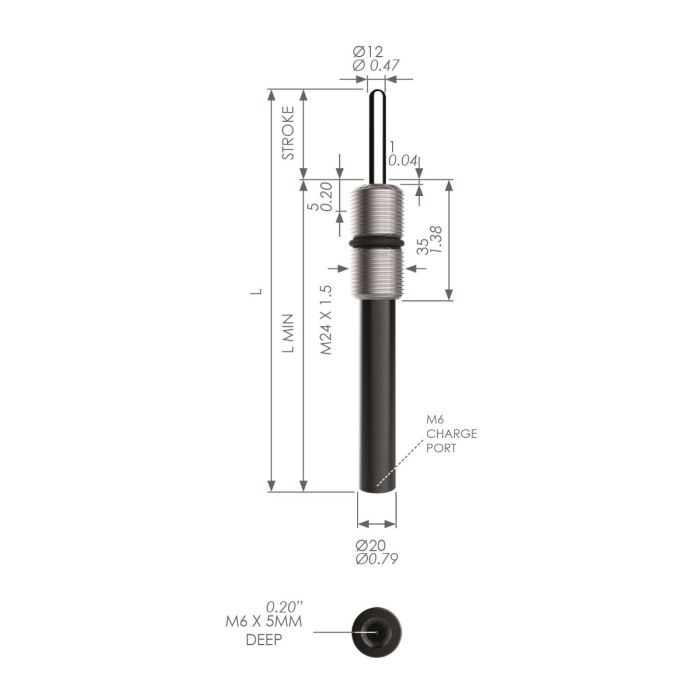

20x125 40mm travel threaded compression spring with an M24x1.5mm thread
SKU
MNE24-XXX-040
| Outside Dia. (mm) | 20 |
|---|---|
| Piston Dia. (mm) | 12 |
| Travel (mm) | 40 |
| Body Length (mm) | 85 |
| Free Length (mm) | 125 |
| Mounting Options | Threaded Pocket |
| Charge Port | M6 |
| Tapped Hole Depth (mm) | 5 |
| Initial Force (N) | 230, 450, 850, 1700 |
| Max Force (N) | 390, 800, 1500, 2900 |
| Body Thread | M24x1.5 |
| Certification | ISO 9001:2015, PED 2014/68/EU |
£95.92
All prices exclude VAT
VOLUME DISCOUNTS
- QUANTITYPRICE
- 10 + £88.73
- 25 + £81.53
