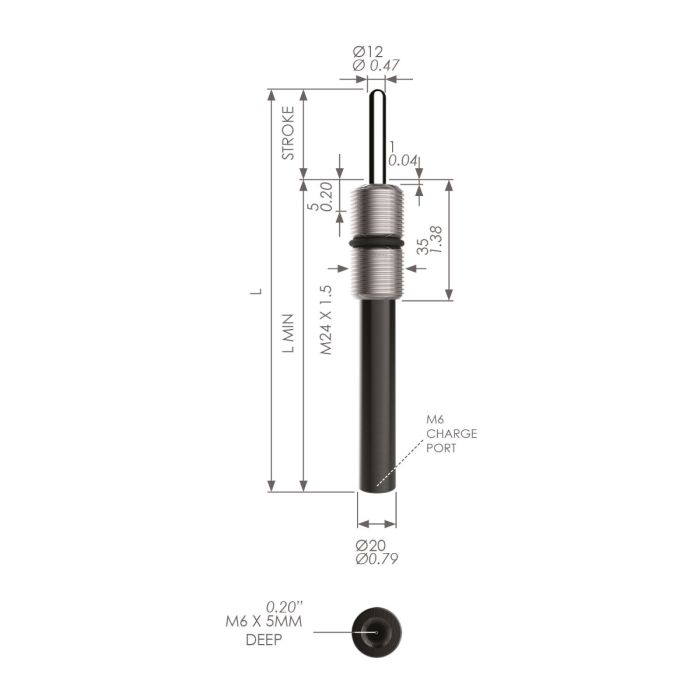

20x185 70mm travel threaded compression spring with an M24x1.5mm thread
SKU
MNE24-XXX-070
| Outside Dia. (mm) | 20mm |
|---|---|
| Piston Dia. (mm) | 12 |
| Travel (mm) | 70mm |
| Body Length (mm) | 115 |
| Free Length (mm) | 185 |
| Mounting Options | Threaded Pocket |
| Charge Port | M6 |
| Tapped Hole Depth (mm) | 5 |
| Initial Force (N) | 230, 450, 850, 1700 |
| Body Thread (B) | M24x1.5 |
| Certification | ISO 9001:2015, PED 2014/68/EU |
£101.92
All prices exclude VAT
VOLUME DISCOUNTS
- QUANTITYPRICE
- 10 + £94.28
- 25 + £86.63
-
Product codeProduct DescriptionStock Status
-
MNE24-XXX-07020x185 70mm travel threaded compression spring with an M24x1.5mm threadChat or Contact us
