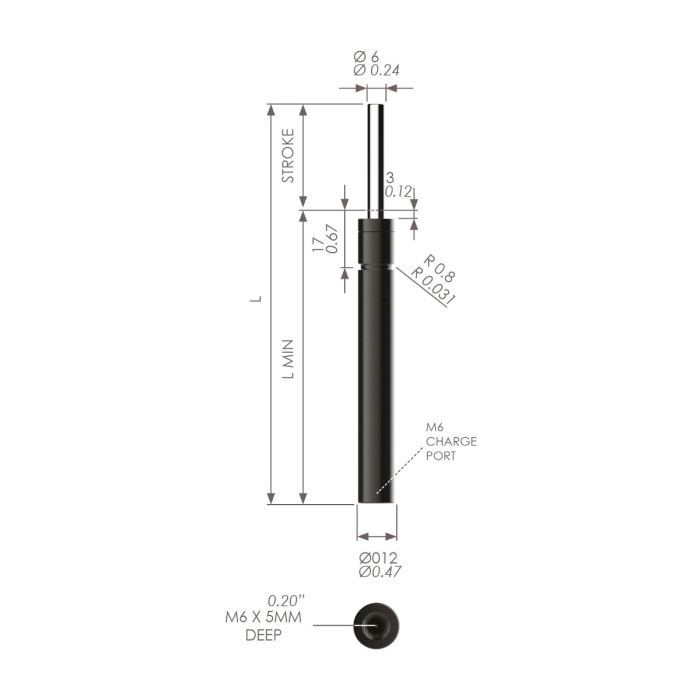

12x67.4 13mm travel micro compression spring
SKU
MS12-XXX-013
| Outside Dia. (mm) | 12mm |
|---|---|
| Piston Dia. (mm) | 6 |
| Travel (mm) | 13mm |
| Body Length (mm) | 54.7 |
| Free Length (mm) | 67.4 |
| Mounting Options | Drop-in Pocket, Front Flange, M6 Tapped Hole (strokes up to 25mm) |
| Charge Port | M6 |
| Tapped Hole Depth (mm) | 5 |
| Initial Force (N) | 130, 250, 380, 500 |
| Certification | ISO 9001:2015 |
£67.92
All prices exclude VAT
VOLUME DISCOUNTS
- QUANTITYPRICE
- 10 + £62.83
- 25 + £57.73
-
Product codeProduct DescriptionStock Status
-
MS12-XXX-01312x67.4 13mm travel micro compression springChat or Contact us
