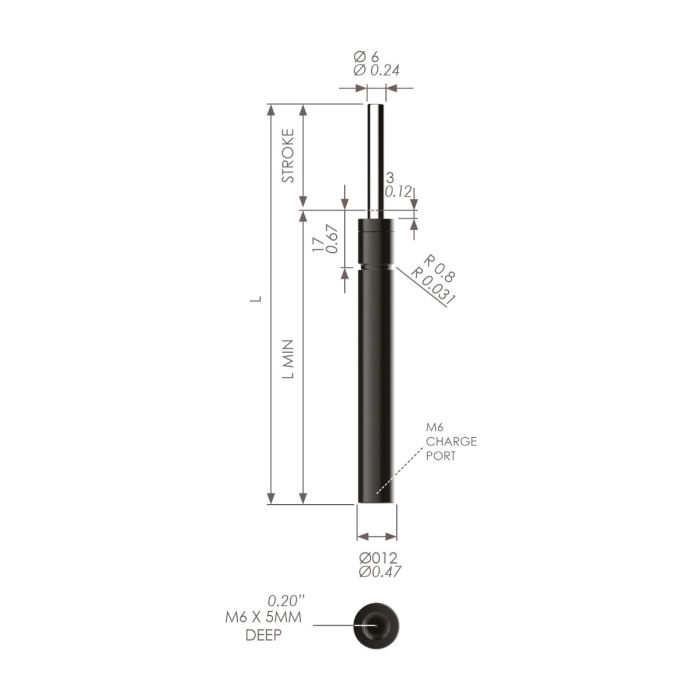

12x92 25mm travel micro compression spring
SKU
MS12-XXX-025
| Outside Dia. (mm) | 12mm |
|---|---|
| Piston Dia. (mm) | 6 |
| Travel (mm) | 25mm |
| Body Length (mm) | 67 |
| Free Length (mm) | 92 |
| Mounting Options | Drop-in Pocket, Front Flange, M6 Tapped Hole (strokes up to 25mm) |
| Charge Port | M6 |
| Tapped Hole Depth (mm) | 5 |
| Initial Force (N) | 130, 250, 380, 500 |
| Certification | ISO 9001:2015 |
£68.78
All prices exclude VAT
VOLUME DISCOUNTS
- QUANTITYPRICE
- 10 + £63.62
- 25 + £58.46
-
Product codeProduct DescriptionStock Status
-
MS12-XXX-02512x92 25mm travel micro compression springChat or Contact us
