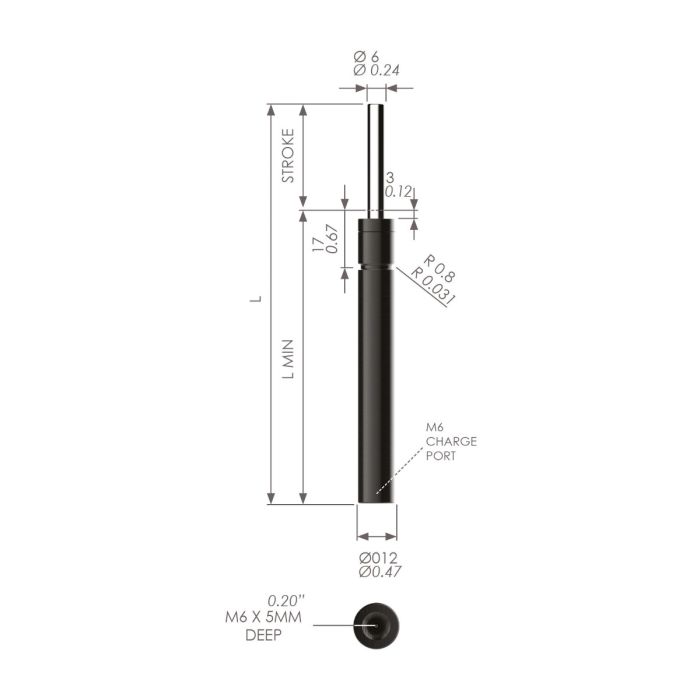

12x118 38mm travel micro compression spring
SKU
MS12-XXX-038
| Outside Dia. (mm) | 12mm |
|---|---|
| Piston Dia. (mm) | 6mm |
| Travel (mm) | 38mm |
| Body Length (mm) | 80mm |
| Free Length (mm) | 118mm |
| Mounting Options | Drop-in Pocket, Front Flange, M6 Tapped Hole (strokes up to 25mm) |
| Charge Port | M6x1 |
| Tapped Hole Depth (mm) | 5mm |
| Initial Force (N) | 130N, 250N, 380N, 500N |
| Max Force (N) | 182N, 364N, 546N, 727N |
| Certification | ISO 9001:2015 |
£68.03
All prices exclude VAT
VOLUME DISCOUNTS
- QUANTITYPRICE
- 10 + £62.93
- 25 + £57.83
-
Product codeProduct DescriptionStock Status
-
MS12-XXX-03812x118 38mm travel micro compression springChat or Contact us
