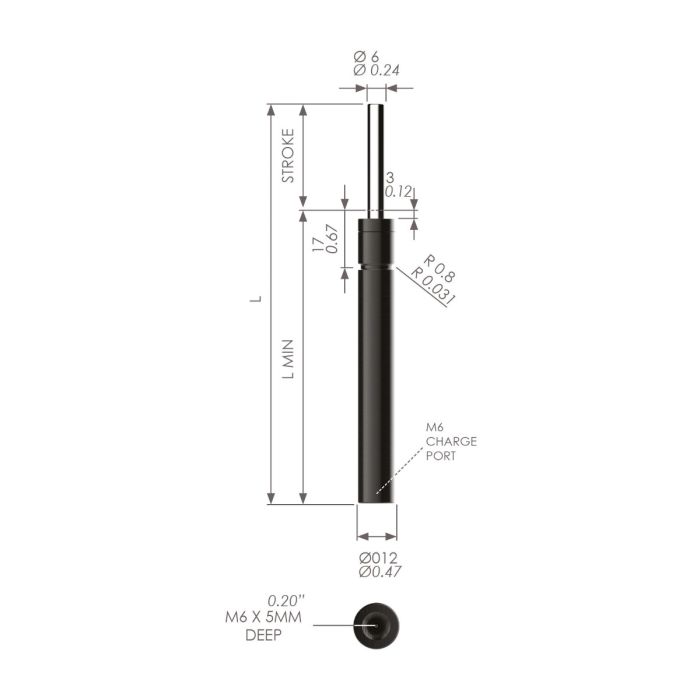

12x172 63.5mm travel micro compression spring
SKU
MS12-XXX-063.5
| Outside Dia. (mm) | 12 |
|---|---|
| Piston Dia. (mm) | 6 |
| Travel (mm) | 63 |
| Body Length (mm) | 108.5 |
| Free Length (mm) | 172 |
| Mounting Options | Drop-in Pocket, Front Flange, M6 Tapped Hole (strokes up to 25) |
| Charge Port | M6 |
| Tapped Hole Depth (mm) | 5 |
| Initial Force (N) | 130, 250, 380, 500 |
| Max Force (N) | 182, 364, 546, 727 |
| Certification | ISO 9001:2015 |
£76.76
All prices exclude VAT
VOLUME DISCOUNTS
- QUANTITYPRICE
- 10 + £71.00
- 25 + £65.24
