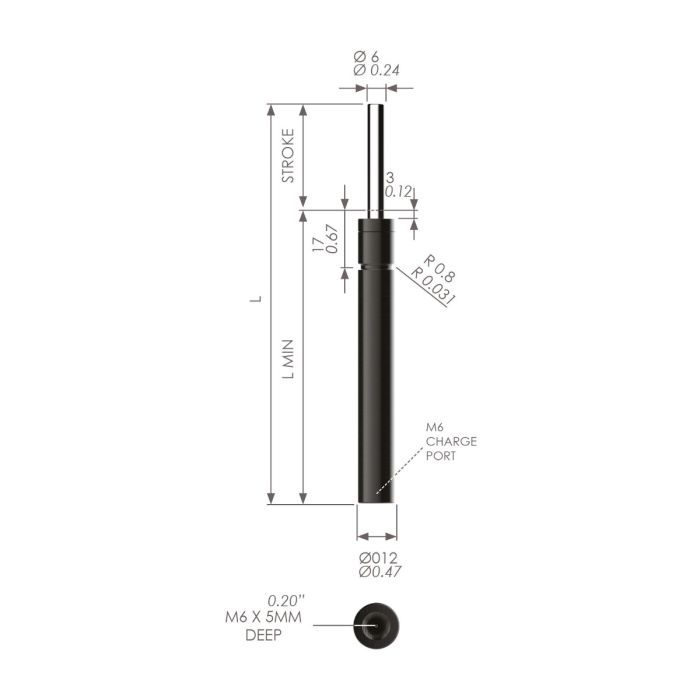

12x205 80mm travel micro compression spring
SKU
MS12-XXX-080
| Outside Dia. (mm) | 12mm |
|---|---|
| Piston Dia. (mm) | 6 |
| Travel (mm) | 80mm |
| Body Length (mm) | 125 |
| Free Length (mm) | 205 |
| Mounting Options | Drop-in Pocket, Front Flange, M6 Tapped Hole (strokes up to 25mm) |
| Charge Port | M6 |
| Tapped Hole Depth (mm) | 5 |
| Initial Force (N) | 130, 250, 380, 500 |
| Certification | ISO 9001:2015 |
£77.79
All prices exclude VAT
VOLUME DISCOUNTS
- QUANTITYPRICE
- 10 + £71.96
- 25 + £66.12
-
Product codeProduct DescriptionStock Status
-
MS12-XXX-08012x205 80mm travel micro compression springChat or Contact us
