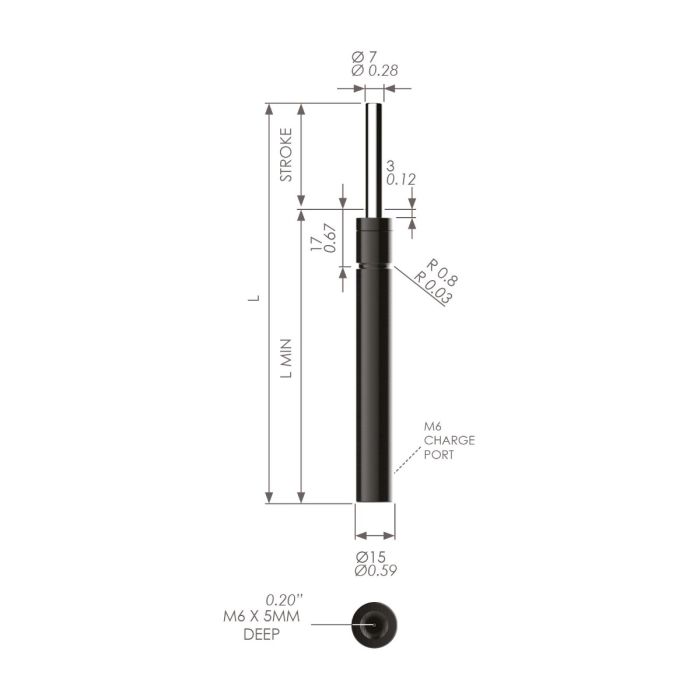

15x62 10mm travel micro compression spring
SKU
MS15-XXX-010
| Outside Dia. (mm) | 15mm |
|---|---|
| Piston Dia. (mm) | 7 |
| Travel (mm) | 10mm |
| Body Length (mm) | 52 |
| Free Length (mm) | 62 |
| Mounting Options | Drop-in Pocket, Front Flange, M6 Tapped Hole (strokes up to 25mm) |
| Charge Port | M6 |
| Tapped Hole Depth (mm) | 5 |
| Initial Force (N) | 180, 350, 500, 700 |
| Certification | ISO 9001:2015 |
£59.22
All prices exclude VAT
VOLUME DISCOUNTS
- QUANTITYPRICE
- 10 + £54.78
- 25 + £50.34
-
Product codeProduct DescriptionStock Status
-
MS15-XXX-01015x62 10mm travel micro compression springChat or Contact us
