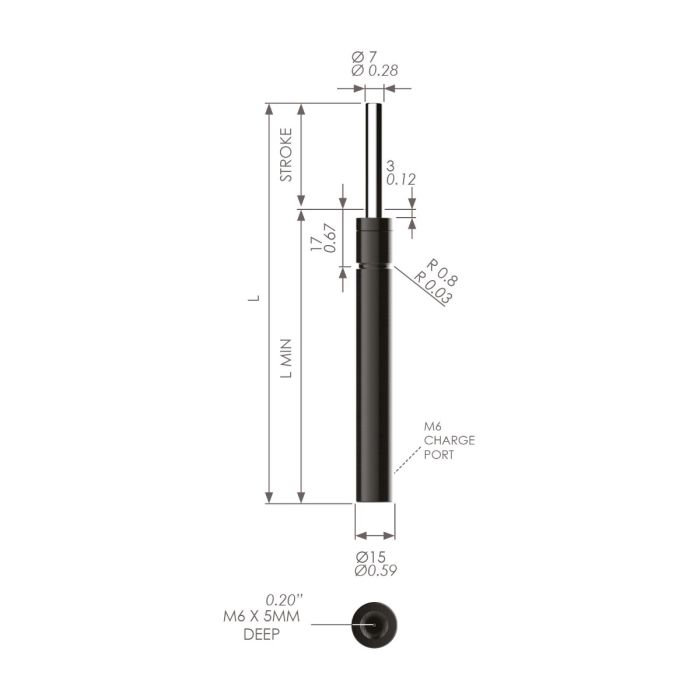

15x142 50mm travel micro compression spring
SKU
MS15-XXX-050
| Outside Dia. (mm) | 15 |
|---|---|
| Piston Dia. (mm) | 7 |
| Travel (mm) | 50 |
| Body Length (mm) | 92 |
| Free Length (mm) | 142 |
| Mounting Options | Drop-in Pocket, Front Flange, M6 Tapped Hole (strokes up to 25) |
| Charge Port | M6 |
| Tapped Hole Depth (mm) | 5 |
| Initial Force (N) | 180, 350, 500, 700 |
| Max Force (N) | 249, 498, 747, 996 |
| Certification | ISO 9001:2015 |
£74.63
All prices exclude VAT
VOLUME DISCOUNTS
- QUANTITYPRICE
- 10 + £69.03
- 25 + £63.43
