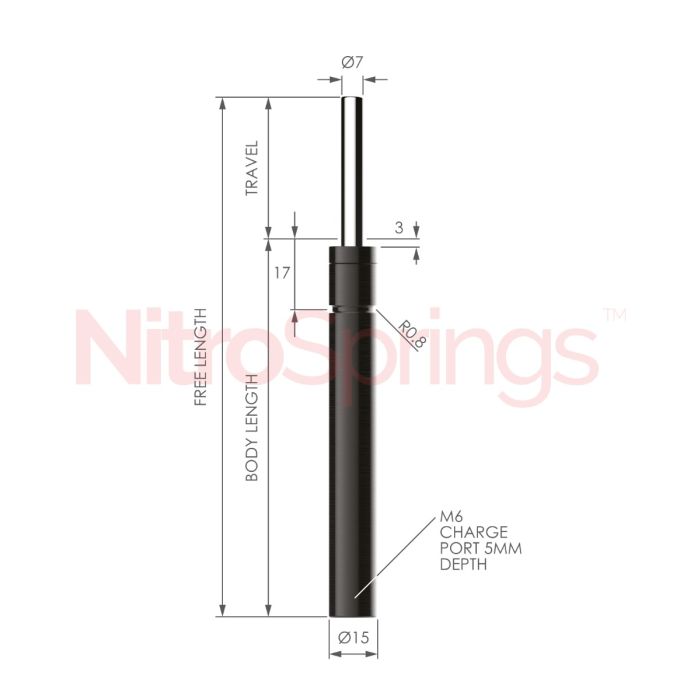

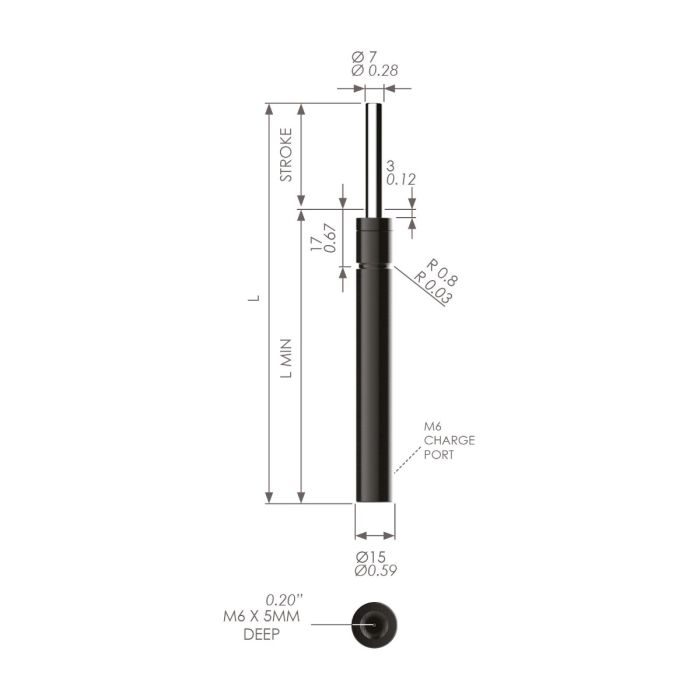

15x56 7mm travel micro compression spring
SKU
MS15-XXX-007
| Outside Dia. (mm) | 15mm |
|---|---|
| Piston Dia. (mm) | 7mm |
| Travel (mm) | 7mm |
| Body Length (mm) | 49mm |
| Free Length (mm) | 56mm |
| Mounting Options | Drop-in Pocket, Front Flange, M6 Tapped Hole (strokes up to 25mm) |
| Charge Port | M6x1 |
| Tapped Hole Depth (mm) | 5mm |
| Initial Force (N) | 180N, 350N, 500N, 700N |
| Max Force (N) | 249N, 498N, 747N, 996N |
| Certification | ISO 9001:2015 |
£73.14
All prices exclude VAT
VOLUME DISCOUNTS
- QUANTITYPRICE
- 10 + £67.66
- 25 + £62.12
-
Product codeProduct DescriptionStock Status
-
MS15-XXX-00715x56 7mm travel micro compression springChat or Contact us
