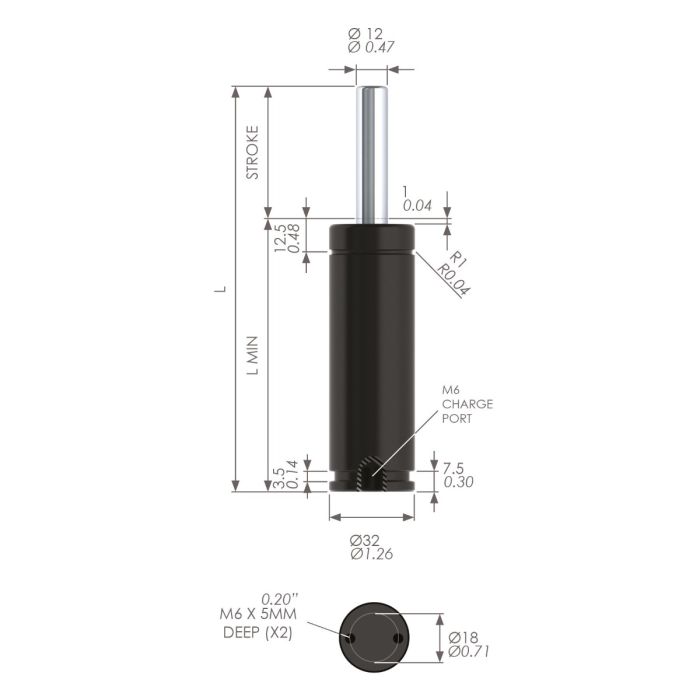

NG2-100-038 Nitrogen Gas Spring, 1000N Force
SKU
NG2-100-038
| Body Dia. (mm) | 32 |
|---|---|
| Piston Dia. (mm) | 12 |
| Stroke (mm) | 38 |
| L Min (mm) | 88.1 |
| Full Length (mm) | 126.2 |
| Mounting Options | Drop-in Pocket, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Charge Port | M6 |
| Tapped Hole Depth (mm) | 5 |
| Initial Force (N) | 1000 |
| Max Force (N) | 1531 |
| Certification | ISO 9001:2015, PED 2014/68/EU |
