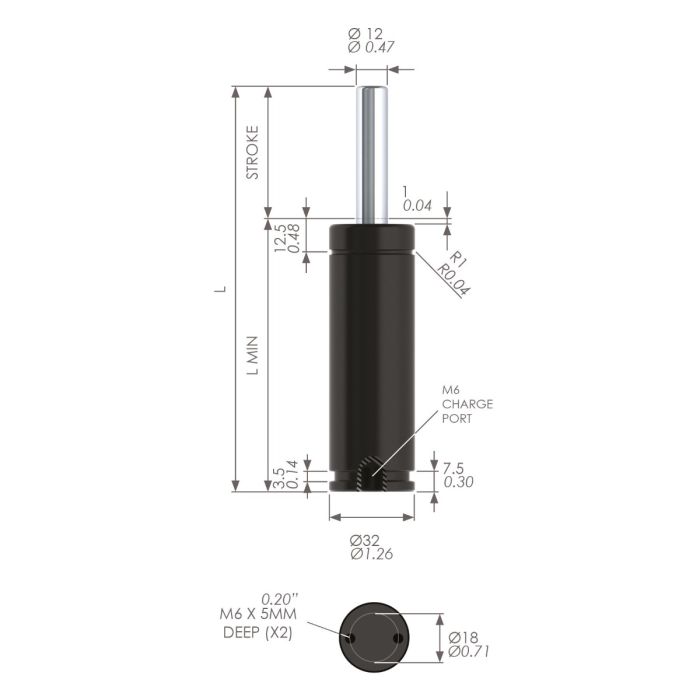

NG2-150-050 Nitrogen Gas Spring, 1500N Force
SKU
NG2-150-050
Body Dia. (mm) | 32 |
---|---|
Piston Dia. (mm) | 12 |
Stroke (mm) | 50 |
L Min (mm) | 100 |
Full Length (mm) | 150 |
Mounting Options | Drop-in Pocket, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
Charge Port | M6 |
Tapped Hole Depth (mm) | 5 |
Initial Force (N) | 1500 |
Max Force (N) | 2299 |
Certification | ISO 9001:2015, PED 2014/68/EU |
P.O.A
Contact us for more information
All prices exclude VAT
