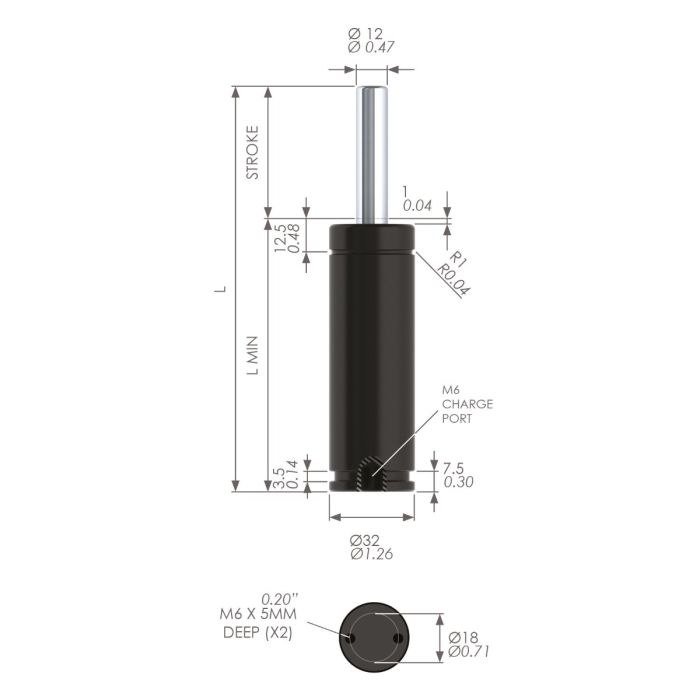

NG2-150-125 Nitrogen Gas Spring, 1500N Force
SKU
NG2-150-125
| Body Dia. (mm) | 32 |
|---|---|
| Piston Dia. (mm) | 12 |
| Stroke (mm) | 125 |
| L Min (mm) | 175 |
| Full Length (mm) | 300 |
| Mounting Options | Drop-in Pocket, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Charge Port | M6 |
| Tapped Hole Depth (mm) | 5 |
| Initial Force (N) | 1500 |
| Max Force (N) | 2299 |
| Certification | ISO 9001:2015, PED 2014/68/EU |
P.O.A
Contact us for more information
All prices exclude VAT
