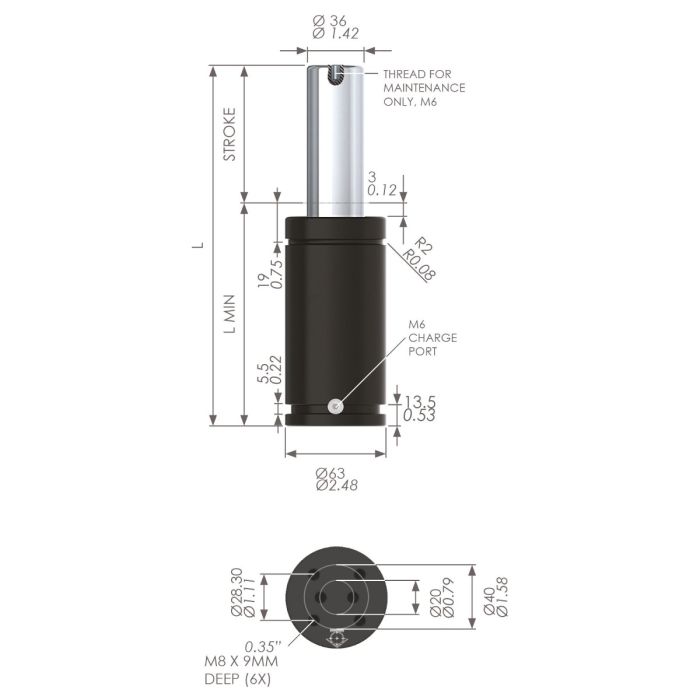

EX1500-080 Nitrogen Gas Spring, 1500daN Force
SKU
EX1500-080
| Body Dia. (mm) | 63 |
|---|---|
| Piston Dia. (mm) | 36 |
| Stroke (mm) | 80 |
| L Min (mm) | 124 |
| Full Length (mm) | 204 |
| Mounting Options | Base Plate, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Charge Port | M6 |
| Tapped Hole Depth (mm) | 6 |
| Initial Force (N) | 15000 |
| Max Force (N) | 25500 |
| Certification | ISO 9001:2015, PED 2014/68/EU |
Product Enquiry
The EX range is our most powerful, compact rod sealed gas spring
