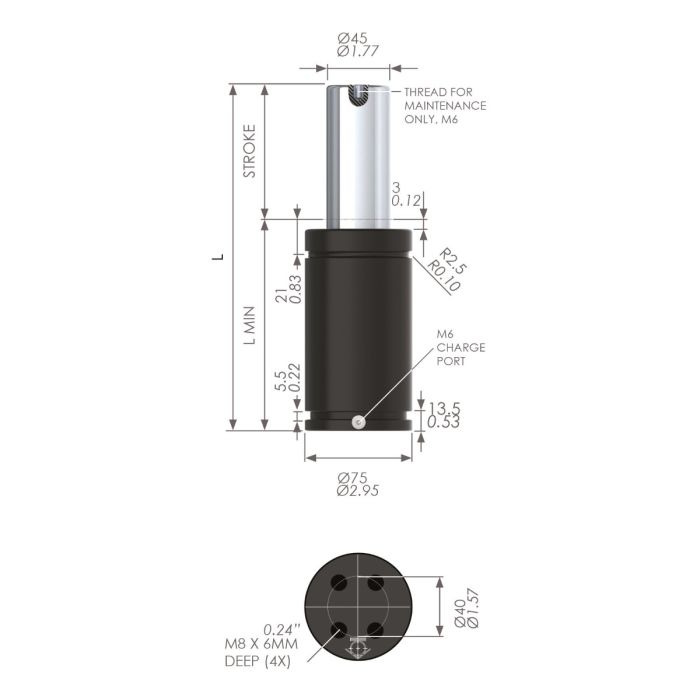

EX2400-075 Nitrogen Gas Spring, 2400daN Force
SKU
EX2400-075
| Body Dia. (mm) | 75 |
|---|---|
| Piston Dia. (mm) | 45 |
| Stroke (mm) | 75 |
| L Min (mm) | 120 |
| Full Length (mm) | 195 |
| Mounting Options | Base Plate, End Support, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Charge Port | M6 |
| Tapped Hole Depth (mm) | 6 |
| Initial Force (N) | 24000 |
| Max Force (N) | 40320 |
| Certification | ISO 9001:2015, PED 2014/68/EU |
P.O.A
Contact us for more information
All prices exclude VAT
