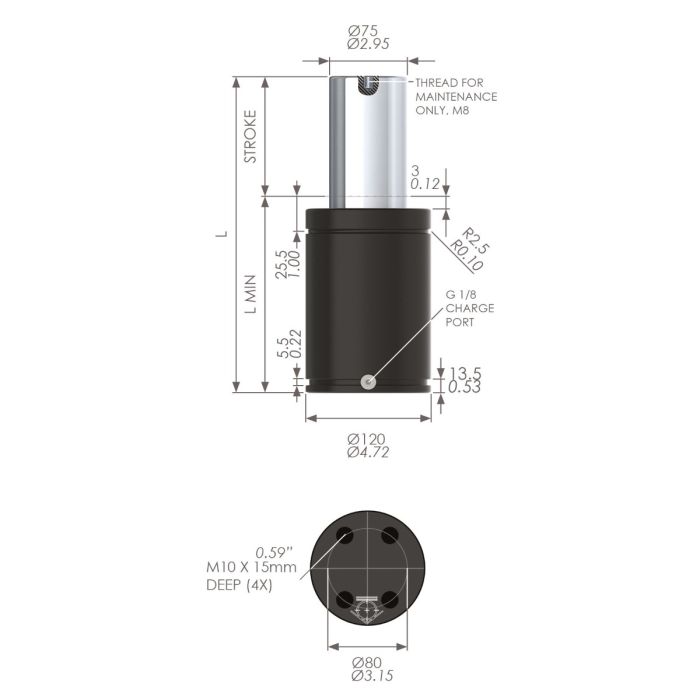

EX6600-125 Nitrogen Gas Spring, 6630daN Force
SKU
EX6600-125
| Body Dia. (mm) | 120 |
|---|---|
| Piston Dia. (mm) | 75 |
| Stroke (mm) | 125 |
| L Min (mm) | 193 |
| Full Length (mm) | 318 |
| Mounting Options | Base Plate, End Support, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Charge Port | G1/8 |
| Tapped Hole Depth (mm) | 12 |
| Initial Force (N) | 66300 |
| Max Force (N) | 112000 |
| Certification | ISO 9001:2015, PED 2014/68/EU |
Product Enquiry
The EX range is our most powerful, compact rod sealed gas spring
-
Product codeProduct DescriptionStock Status
-
EX6600-125EX6600-125 Nitrogen Gas Spring, 6630daN ForceChat or Contact us
