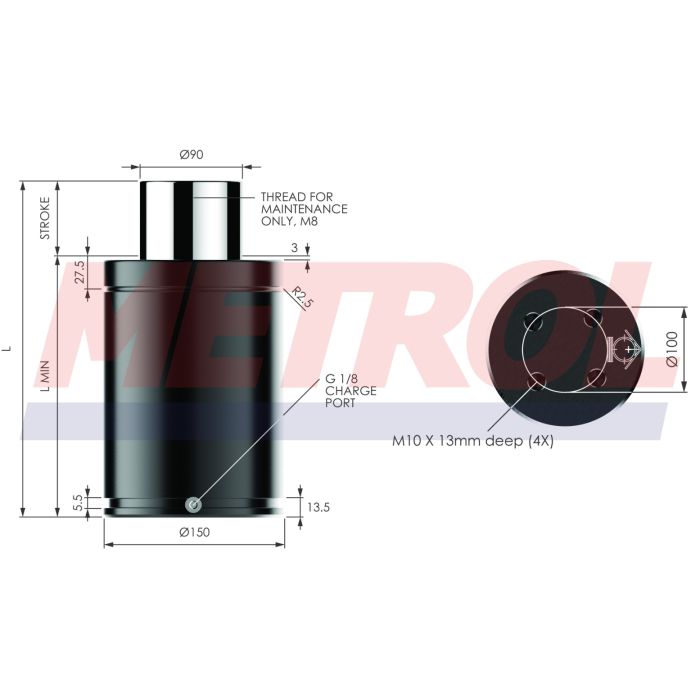

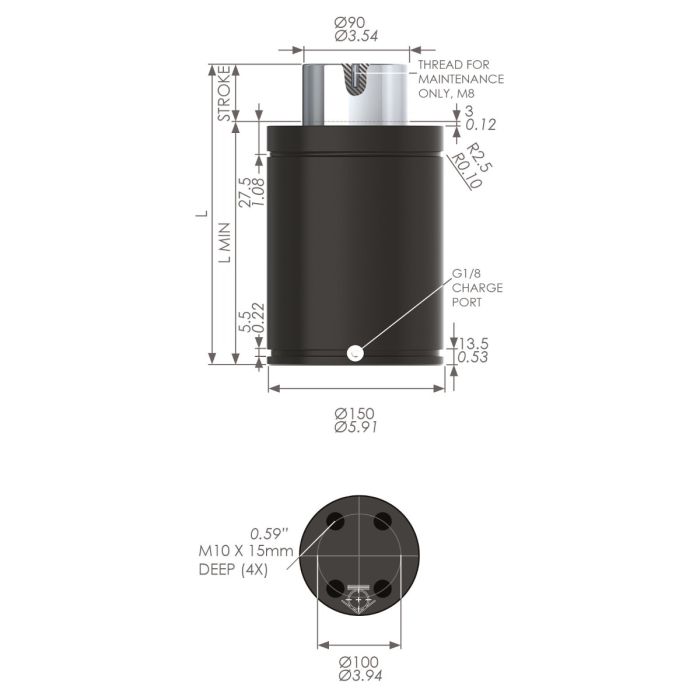

EX9500-025 Nitrogen Gas Spring, 9500daN Force
SKU
EX9500-025
| Body Dia. (mm) | 150 |
|---|---|
| Piston Dia. (mm) | 90 |
| Stroke (mm) | 25 |
| L Min (mm) | 103 |
| Full Length (mm) | 128 |
| Mounting Options | Base Plate, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Charge Port | G1/8 |
| Tapped Hole Depth (mm) | 13 |
| Initial Force (N) | 95000 |
| Max Force (N) | 139940 |
| Certification | ISO 9001:2015, PED 2014/68/EU |
Product Enquiry
The EX range is our most powerful, compact rod sealed gas spring
-
Product codeProduct DescriptionStock Status
-
EX9500-025EX9500-025 Nitrogen Gas Spring, 9500daN ForceChat or Contact us
