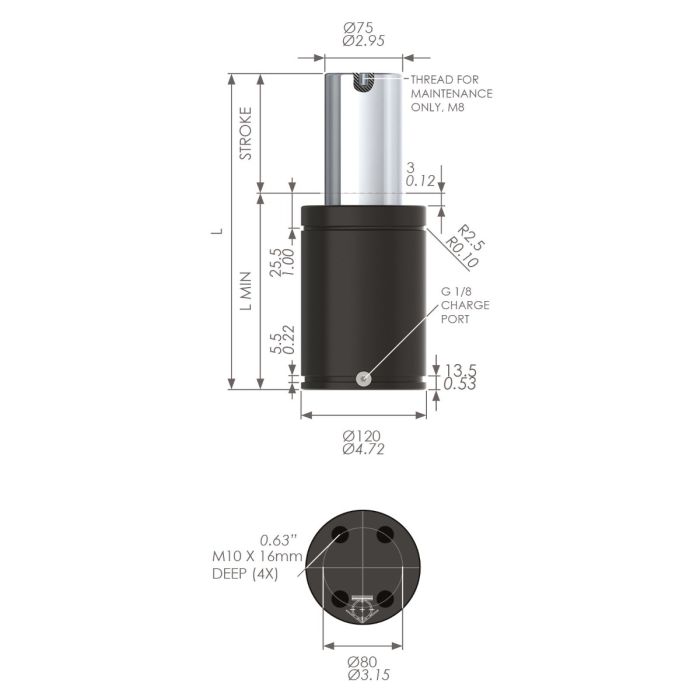

G-EX6600-016 Nitrogen Gas Spring, 6630daN Force
SKU
G-EX6600-016
| Body Dia. (mm) | 0201 |
|---|---|
| L Min (mm) | 58.3x65mm |
| Mounting Options | End Support, Front Flange, Square Flange, Square Front Flange |
| Tapped Hole Depth (mm) | 16mm |
| Certification | PED 2014/68/EU |
Product Enquiry
The G-EX6600-016 is part of the robust G-EX range and is a powerful compact rod sealed gas spring. It has a maximum spring force of 8900daN and an overall length is 104mm.
-
Product codeProduct DescriptionStock Status
-
G-EX6600-016G-EX6600-016 Nitrogen Gas Spring, 6630daN ForceChat or Contact us
