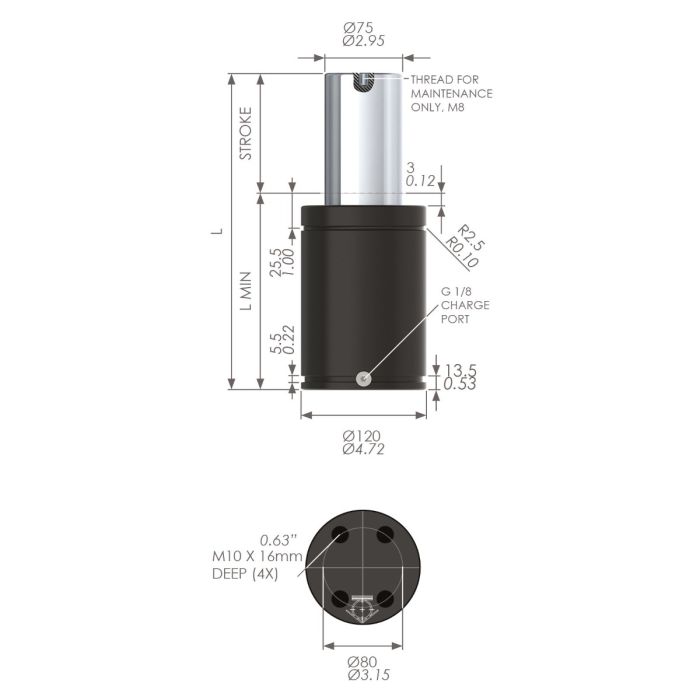

G-EX6600-025 Nitrogen Gas Spring, 6630daN Force
SKU
G-EX6600-025
| Body Dia. (mm) | 120 |
|---|---|
| Piston Dia. (mm) | 75 |
| Stroke (mm) | 25 |
| L Min (mm) | 97 |
| Full Length (mm) | 122 |
| Mounting Options | Base Plate, End Support, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Charge Port | G1/8 |
| Tapped Hole Depth (mm) | 16 |
| Initial Force (N) | 66300 |
| Max Force (N) | 93900 |
| Certification | PED 2014/68/EU |
Product Enquiry
The G-EX6600-025 is part of the robust G-EX range and is a powerful compact rod sealed gas spring. It has a maximum spring force of 9390daN and an overall length is 122mm.
