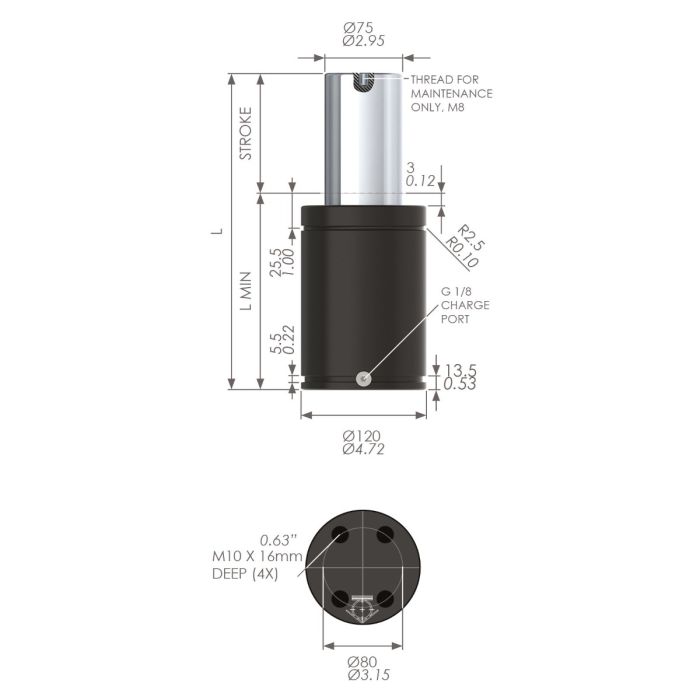

G-EX6600-063 Nitrogen Gas Spring, 6630daN Force
SKU
G-EX6600-063
| Body Dia. (mm) | 120 |
|---|---|
| Piston Dia. (mm) | 75 |
| Stroke (mm) | 63 |
| L Min (mm) | 135 |
| Full Length (mm) | 198 |
| Mounting Options | Base Plate, End Support, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Charge Port | G1/8 |
| Tapped Hole Depth (mm) | 16 |
| Initial Force (N) | 66300 |
| Max Force (N) | 102400 |
| Certification | PED 2014/68/EU |
Product Enquiry
The G-EX6600-063 is part of the robust G-EX range and is a powerful compact rod sealed gas spring. It has a maximum spring force of 10240daN and an overall length is 198mm.
