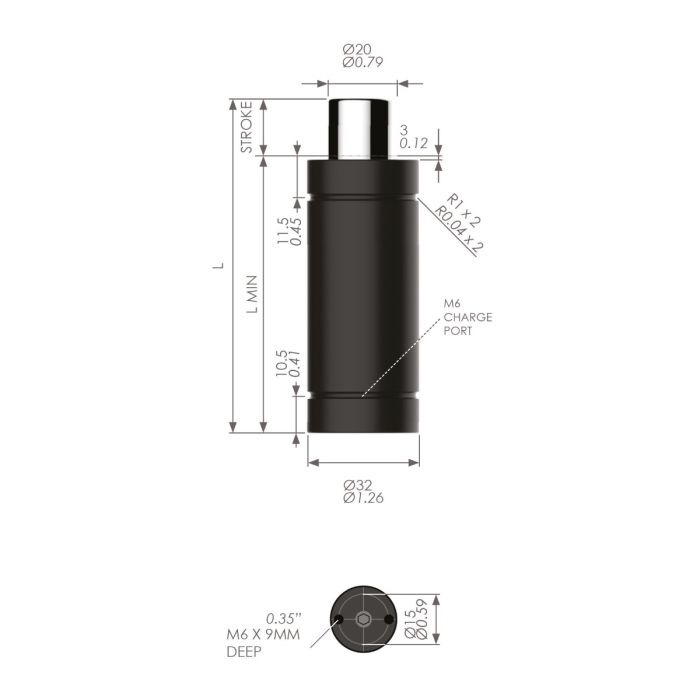

Nitrogen Gas Spring - HDG007-32
SKU
HDG007-32
| Body Dia. (mm) | 32 |
|---|---|
| Piston Dia. (mm) | 20 |
| Stroke (mm) | 32 |
| L Min (mm) | 108 |
| Full Length (mm) | 140 |
| Mounting Options | Front Flange, Tapped Hole, Square Front Flange |
| Charge Port | M6 |
| Tapped Hole Depth (mm) | 5.5 |
| Initial Force (N) | 7400 |
| Max Force (N) | 11250 |
| Certification | PED 2014/68/EU |
Product Enquiry
The HDG range is a compact bore sealed gas spring, giving maximum force for the cylinder diameter.
-
Product codeProduct DescriptionStock Status
-
HDG007-32Nitrogen Gas Spring - HDG007-32Chat or Contact us
