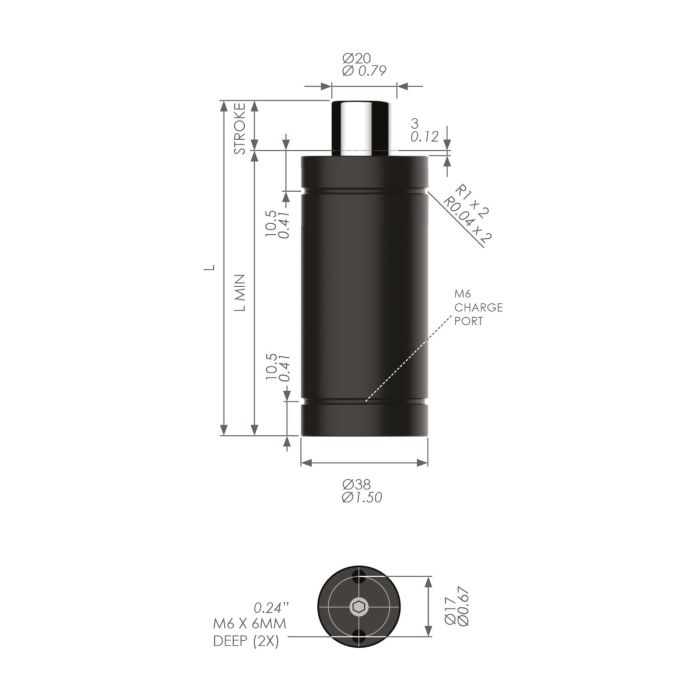

Nitrogen Gas Spring - HDG010-25
SKU
HDG010-25
| Body Dia. (mm) | 38 |
|---|---|
| Piston Dia. (mm) | 20 |
| Stroke (mm) | 25 |
| L Min (mm) | 110 |
| Full Length (mm) | 135 |
| Mounting Options | Front Flange, Square Flange, Square Front Flange |
| Charge Port | M6 |
| Tapped Hole Depth (mm) | 6.5 |
| Initial Force (N) | 10600 |
| Certification | PED 2014/68/EU |
Product Enquiry
The HDG range is a compact bore sealed gas spring, giving maximum force for the cylinder diameter.
-
Product codeProduct DescriptionStock Status
-
HDG010-25Nitrogen Gas Spring - HDG010-25Chat or Contact us
