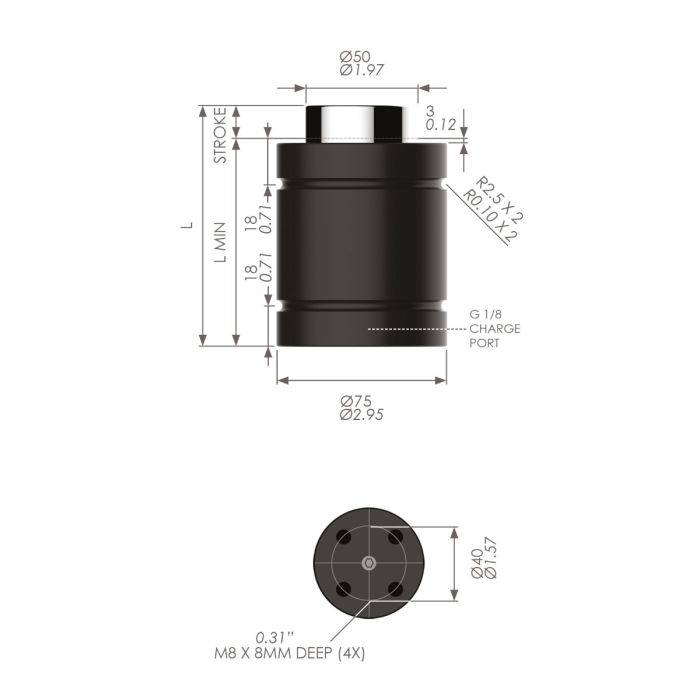

Nitrogen Gas Spring - HDG047-40
SKU
HDG047-40
| Body Dia. (mm) | 75 |
|---|---|
| Piston Dia. (mm) | 50 |
| Stroke (mm) | 40 |
| L Min (mm) | 160 |
| Full Length (mm) | 200 |
| Mounting Options | Front Flange, Square Flange, Square Front Flange |
| Charge Port | G1/8 |
| Tapped Hole Depth (mm) | 9 |
| Initial Force (N) | 47000 |
| Certification | PED 2014/68/EU |
Product Enquiry
The HDG range is a compact bore sealed gas spring, giving maximum force for the cylinder diameter.
-
Product codeProduct DescriptionStock Status
-
HDG047-40Nitrogen Gas Spring - HDG047-40Chat or Contact us
