PRODUCT CODE

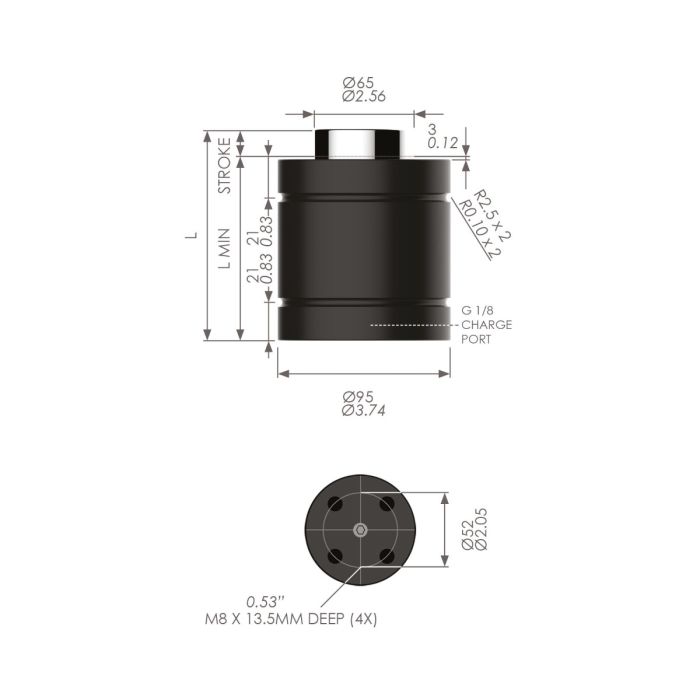

HDG075-65
  • Description:

    The HDG range is a compact bore sealed gas spring, giving maximum force for the cylinder diameter.

  • BODY DIAMETER:95 mm
  • PISTON DIAMETER:65 mm
  • INITIAL FORCE:7500 daN
  • MAXIMUM FORCE:11100 daN
  • STROKE:65 mm
  • L MIN:214 mm
  • LENGTH:279 mm
  • SAFETY MARGIN:3 mm
  • PCD:52 mm
  • TAPPED HOLE DIAMETER:M8
  • TAPPED HOLE DEPTH:9 mm
  • WEIGHT:6.60 Kg
  • MAX PRESSURE:150 Bar
  • MIN PRESSURE:25 Bar
  • MAX PISTON VELOCITY:0.8M/Sec
  • CHARGE PORT:G1/8

Features

Flexi Guide design

Nitrogen Gas Spring - HDG075-65
