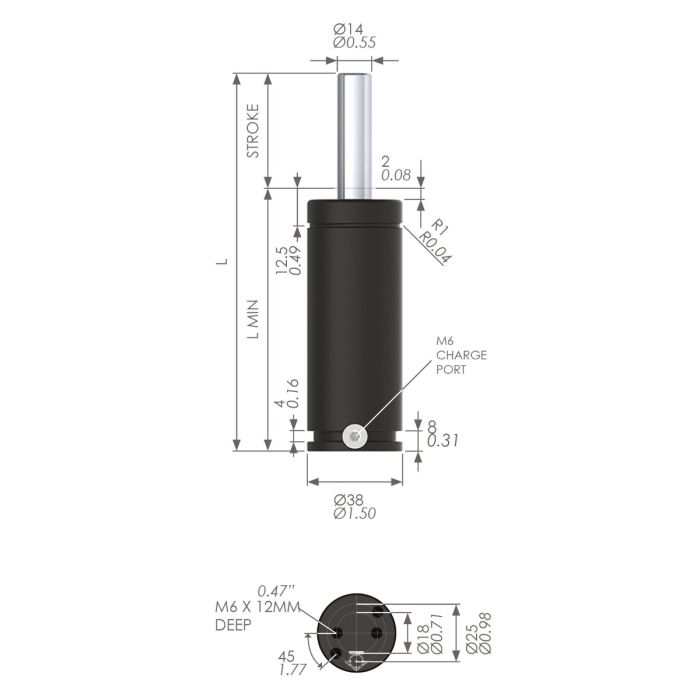

Nitrogen Gas Spring - ISNG0250-080
SKU
ISNG0250-080
| Body Dia. (mm) | 38 |
|---|---|
| Piston Dia. (mm) | 14 |
| Stroke (mm) | 80 |
| L Min (mm) | 130 |
| Full Length (mm) | 210 |
| Mounting Options | End Support, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Charge Port | M6 |
| Tapped Hole Depth (mm) | 8 |
| Initial Force (N) | 2500 |
| Max Force (N) | 3010 |
| Certification | ISO 9001:2015, PED 2014/68/EU |
Product Enquiry
The ISNG range is the optimum design for gas spring durability and conforms to the ISO11901 gas spring standard.
