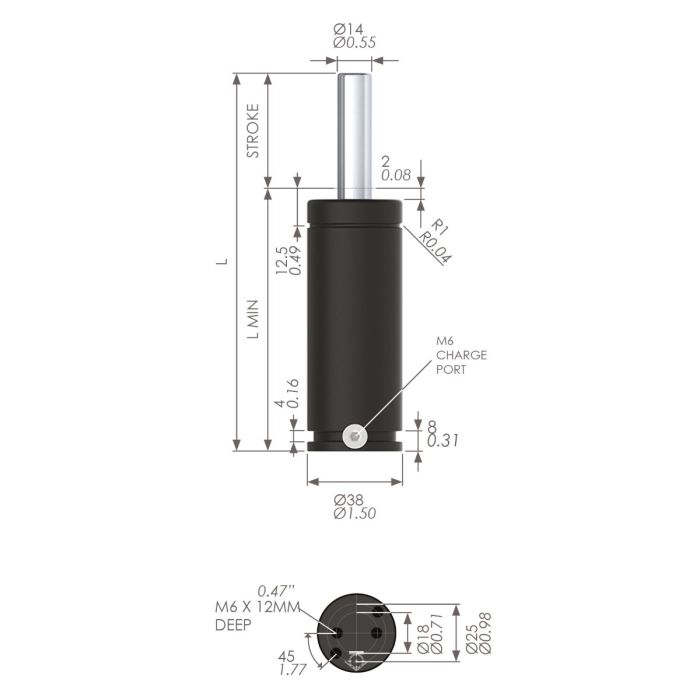

Nitrogen Gas Spring - ISNG0250-125
SKU
ISNG0250-125
| Body Dia. (mm) | 38 |
|---|---|
| Piston Dia. (mm) | 14 |
| Stroke (mm) | 125 |
| L Min (mm) | 175 |
| Full Length (mm) | 300 |
| Mounting Options | End Support, Front Flange, Square Flange, Square Front Flange |
| Charge Port | M6 |
| Tapped Hole Depth (mm) | 8 |
| Initial Force (N) | 2500 |
| Certification | ISO 9001:2015, PED 2014/68/EU |
Product Enquiry
The ISNG range is the optimum design for gas spring durability and conforms to the ISO11901 gas spring standard.
-
Product codeProduct DescriptionStock Status
-
ISNG0250-125Nitrogen Gas Spring - ISNG0250-125Chat or Contact us
