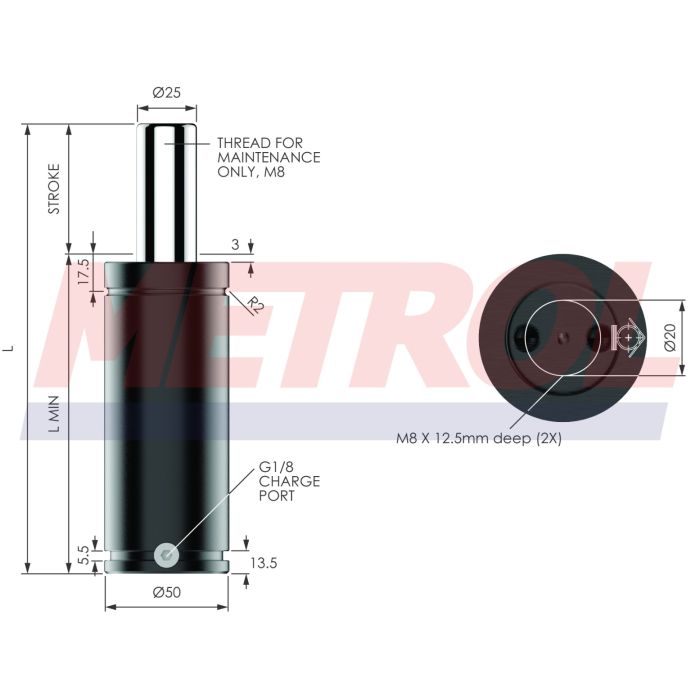

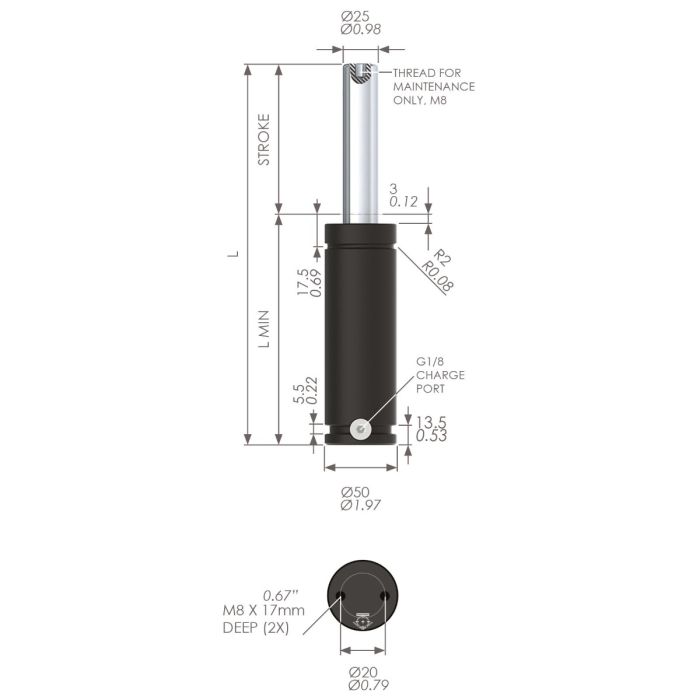

Nitrogen Gas Spring - ISNG0750-200
SKU
ISNG0750-200
| Body Dia. (mm) | 50 |
|---|---|
| Piston Dia. (mm) | 25 |
| Stroke (mm) | 200 |
| L Min (mm) | 295 |
| Full Length (mm) | 495 |
| Mounting Options | Base Plate, End Support, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Charge Port | G1/8 |
| Tapped Hole Depth (mm) | 12.5 |
| Initial Force (N) | 7500 |
| Max Force (N) | 12080 |
| Certification | ISO 9001:2015, PED 2014/68/EU |
P.O.A
Contact us for more information
All prices exclude VAT
