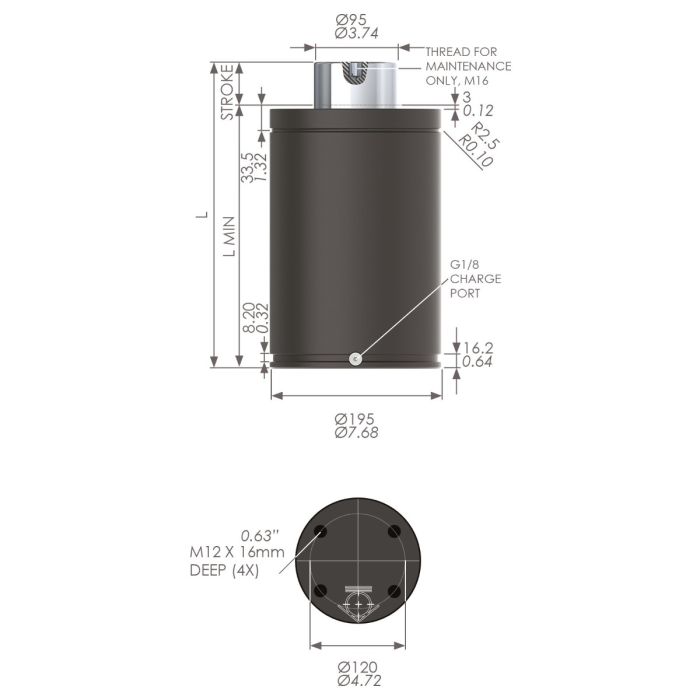

Nitrogen Gas Spring - ISNG10000-038.1
SKU
ISNG10000-038
| Body Dia. (mm) | 195 |
|---|---|
| Piston Dia. (mm) | 95 |
| Stroke (mm) | 38.1 |
| L Min (mm) | 198.1 |
| Full Length (mm) | 236.2 |
| Mounting Options | Base Plate, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Charge Port | G1/8 |
| Tapped Hole Depth (mm) | 16 |
| Initial Force (N) | 100000 |
| Max Force (N) | 141140 |
| Certification | ISO 9001:2015, PED 2014/68/EU |
Product Enquiry
The ISNG range is the optimum design for gas spring durability and conforms to the ISO11901 gas spring standard.
