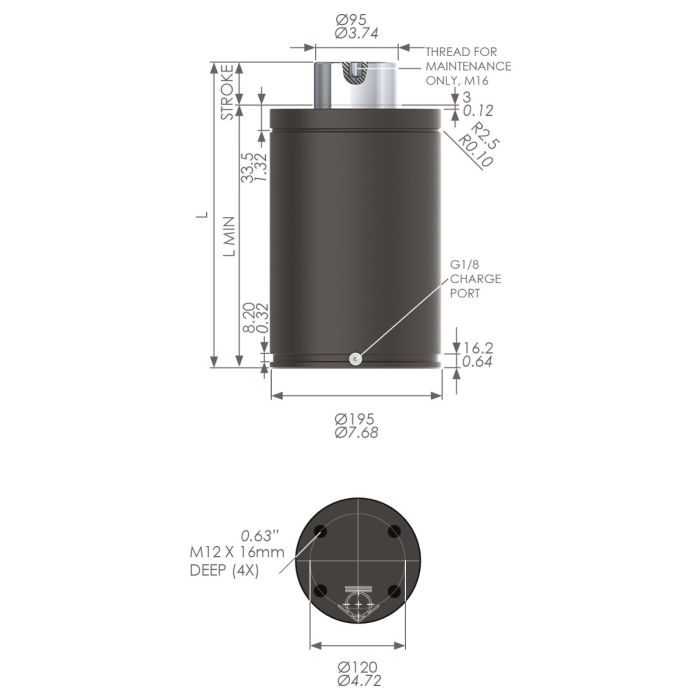

Nitrogen Gas Spring - ISNG10000-063.5
SKU
ISNG10000-063
| Body Dia. (mm) | 195 |
|---|---|
| Piston Dia. (mm) | 95 |
| Stroke (mm) | 63.5 |
| L Min (mm) | 223.5 |
| Full Length (mm) | 287 |
| Mounting Options | Base Plate, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Charge Port | G1/8 |
| Tapped Hole Depth (mm) | 16 |
| Initial Force (N) | 100000 |
| Max Force (N) | 145650 |
| Certification | ISO 9001:2015, PED 2014/68/EU |
P.O.A
Contact us for more information
All prices exclude VAT
