Nitrogen Gas Spring - ISNG5000-100
SKU
ISNG5000-100

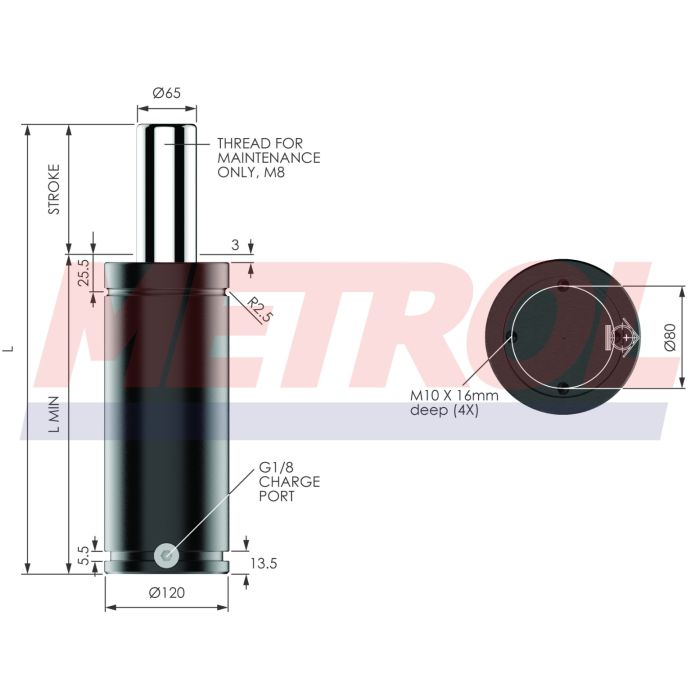

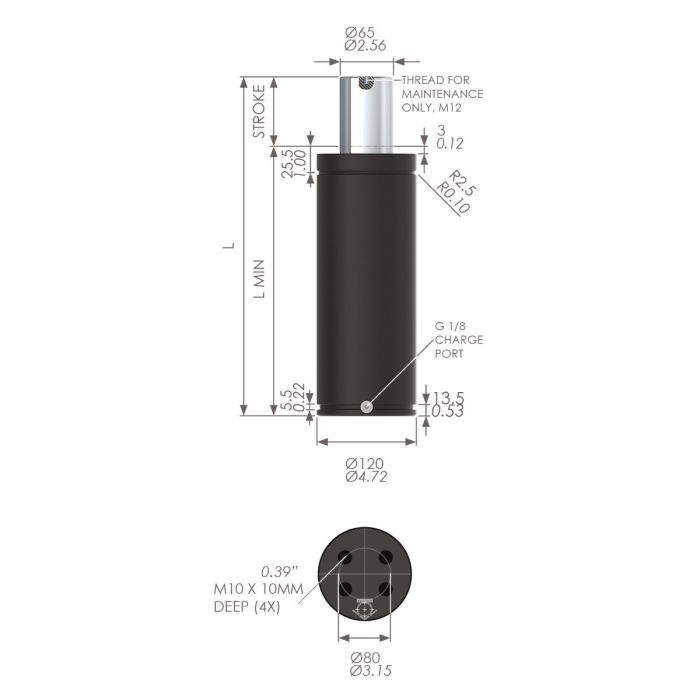

| Body Dia. (mm) | 120 |
|---|---|
| Piston Dia. (mm) | 65 |
| Stroke (mm) | 100 |
| L Min (mm) | 240 |
| Full Length (mm) | 340 |
| Mounting Options | Base Plate, End Support, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Charge Port | G1/8 |
| Tapped Hole Depth (mm) | 16 |
| Initial Force (N) | 50000 |
| Max Force (N) | 76350 |
| Certification | ISO 9001:2015, PED 2014/68/EU |
Product Enquiry
The ISNG range is the optimum design for gas spring durability and conforms to the ISO11901 gas spring standard.
