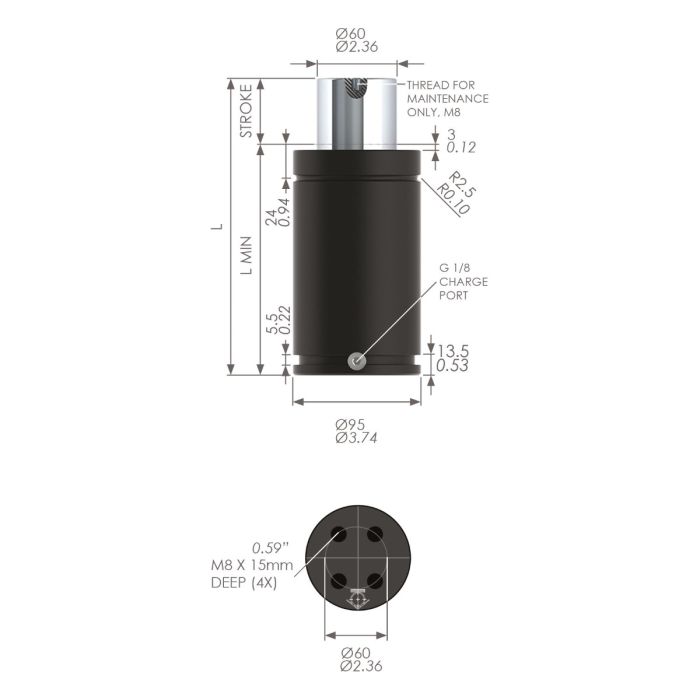

Nitrogen Gas Spring - MX4200-200
SKU
MX4200-200
| Body Dia. (mm) | 95 |
|---|---|
| Piston Dia. (mm) | 60 |
| Stroke (mm) | 200 |
| L Min (mm) | 320 |
| Full Length (mm) | 520 |
| Mounting Options | Base Plate, End Support, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Charge Port | G1/8 |
| Tapped Hole Depth (mm) | 13 |
| Initial Force (N) | 42000 |
| Max Force (N) | 74210 |
| Certification | ISO 9001:2015, PED 2014/68/EU |
Product Enquiry
The MX Range is a rod sealed gas spring that combines the power of the EX range, with the available stroke lengths of the ISNG range.
