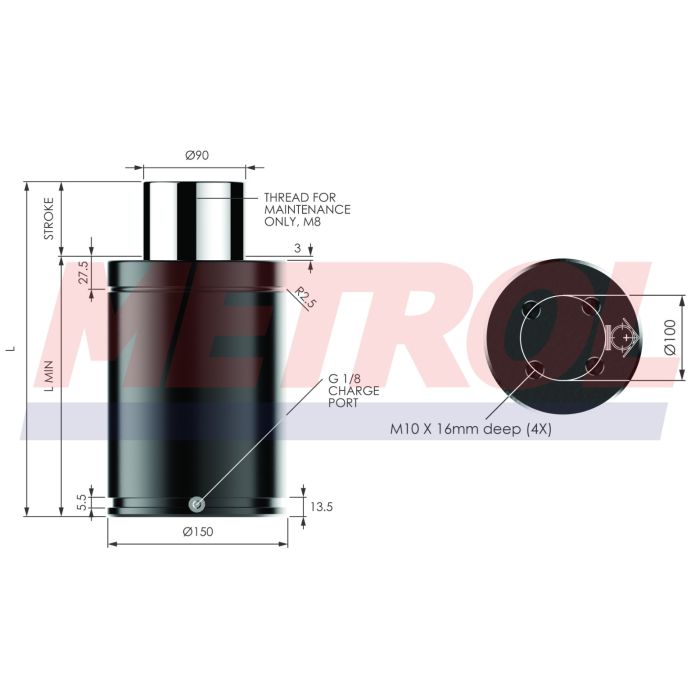

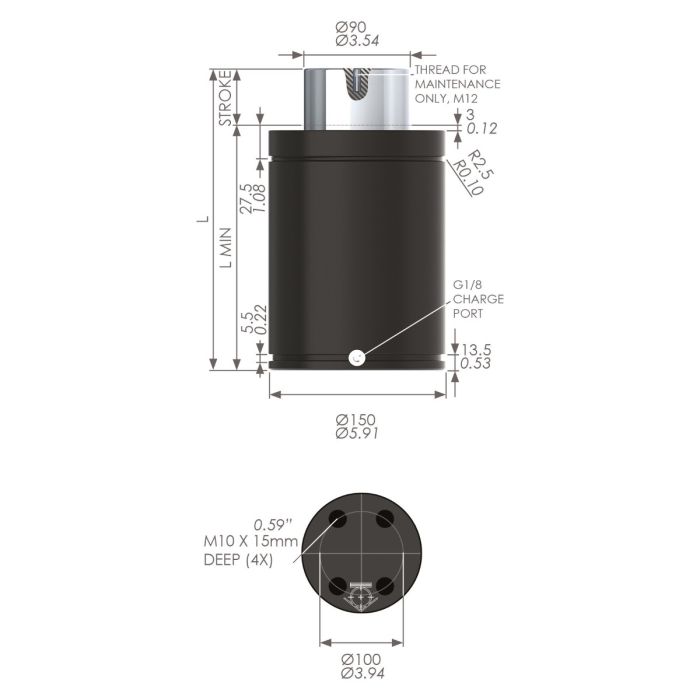

Nitrogen Gas Spring - MX9500-080
SKU
MX9500-080
| Body Dia. (mm) | 150 |
|---|---|
| Piston Dia. (mm) | 90 |
| Stroke (mm) | 80 |
| L Min (mm) | 235 |
| Full Length (mm) | 315 |
| Mounting Options | Base Plate, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Charge Port | G1/8 |
| Tapped Hole Depth (mm) | 16 |
| Initial Force (N) | 95000 |
| Max Force (N) | 164900 |
| Certification | ISO 9001:2015, PED 2014/68/EU |
Product Enquiry
The MX Range is a rod sealed gas spring that combines the power of the EX range, with the available stroke lengths of the ISNG range.
